STMicroelectronics Octal High-Side Smart Power Solid-State Relays

STMicroelectronics Octal High-Side Smart Power Solid-State Relays are 8-channel drivers designed with STMicroelectronics VIPower technology. The relays can drive various loads with one side connected to the ground. Operating from 10.5V to 36V, both ICs have a low supply current, a parallel or 4-wire SPI control interface, a 4×2 LED matrix, and a micropower step-down switching regulator with peak current control loop mode.

Features

10.5V to 36V voltage operating range
UVLO with hysteresis
0.7A or 1.0A (IPS8200HQ or IPS8200HQ-1) per channel output current
Low supply current in OFF (1mA) and ON (5.3mA) states
5V and 3.3V compatible I/Os
Selectable interface on logic side SPI or parallel
5MHz SPI (8- or 16-bits) with output enable, daisy chain, and MCU freeze detection
100mA DC/DC with integrated boot diode and adjustable output voltage
4×2 LED matrix for efficient outputs state LEDs driving

Drive all types of loads (resistive, capacitive, and inductive)
Per-channel overload and short-circuit protection
Per-channel/independent overtemperature protection
Fast demagnetization of inductive loads (Vout clamp)
Overvoltage protection (V_CC clamping)
Loss of GND protection
Power Good (supply voltage level) diagnostic
Common fault open-drain output
IC warning temperature detection
VFQFPN-48L (8mm x 6mm) package
Designed to meet IEC61131-2, IEC61000-4-2, IEC61000-4-4, and IEC61000-4-5

Applications

Programmable Logic Controllers (PLCs)
Distributed I/O

Industrial PC peripheral input/output
Computer Numerical Control (CNC) machines

STMicroelectronics Octal High-Side Smart Power Solid-State Relays

Features

Applications

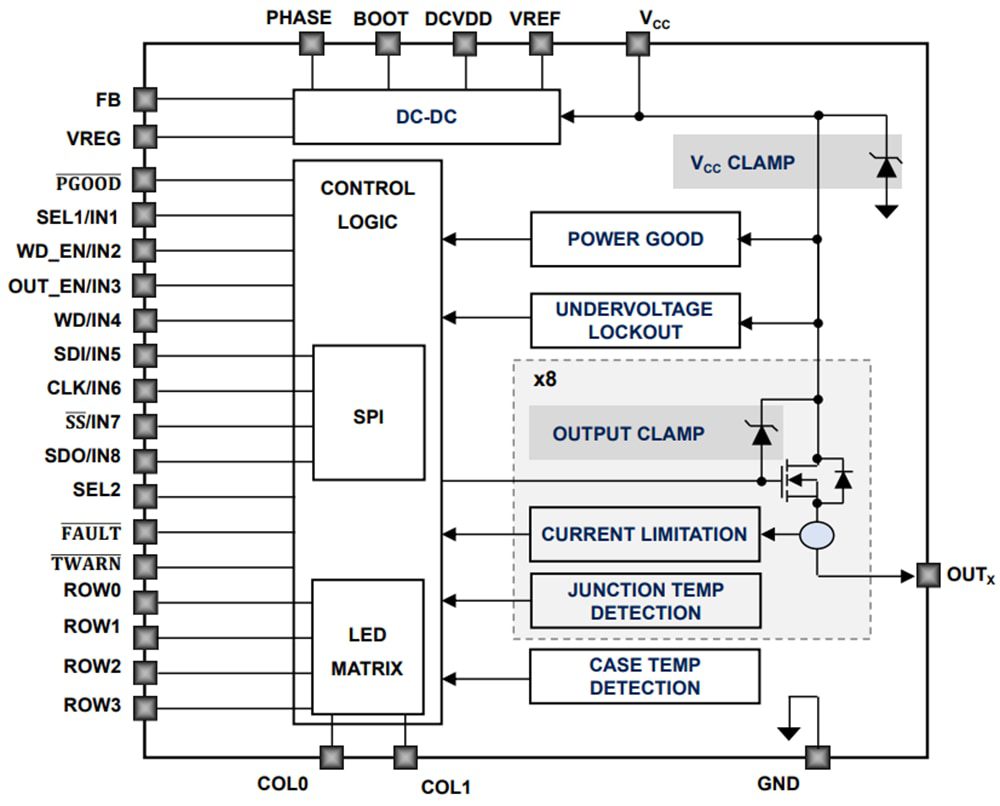

Block Diagram
