STMicroelectronics MLPF-WB-02D3 2.4GHz Low Pass Filter

STMicroelectronics MLPF-WB-02D3 2.4GHz Low Pass Filter integrates an impedance-matching network and harmonics filter. The matching impedance network has been tailored to maximize the RF performances of STM32WB5x and STM32WB1x in WLCSP and UFBGA packages. This device uses STMicroelectronics IPD technology on a non-conductive glass substrate, optimizing RF performances.

Features

Integrated impedance matching to STM32WB5x and STM32WB1x in WLCSP and UFBGA packages
50Ω nominal impedance on the antenna side
Deep rejection harmonics filter
Low insertion loss

Small footprint
Low profile ≤ 630μm after reflow
High RF performances
RF BOM and area reduction
ECOPACK2 compliant component

Applications

BLUETOOTH^® 5
OpenThread
Zigbee^®

IEEE 802.15.4
Optimized for STM32WB5x and STM32WB1x in WLCSP and UFBGA packages

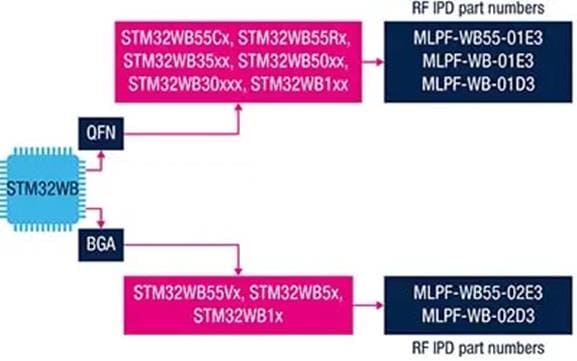

Solutions for STM32WB RF ICs
