STMicroelectronics MLPF-WB-01D3 2.4GHz Low Pass Filter

STMicroelectronics MLPF-WB-01D3 2.4GHz Low Pass Filter embeds an impedance-matching network and harmonics filter. The matching impedance network is designed to maximize the RF performances of STM32WBxx in UFQFPN and VFQFPN packages. The ST MLPF-WB-01D3 2.4GHz low pass filter utilizes IPD technology on a non-conductive glass substrate, optimizing RF performances.

Features

Integrated impedance matching to STM32WBxx in UFQFPN and VFQFPN packages
50Ω nominal impedance on the antenna side
Deep rejection harmonics filter
Low insertion loss

Small footprint
Low profile ≤ 630μm after reflow
High RF performances
RF BOM and area reduction
ECOPACK2 compliant component

Applications

BLUETOOTH® 5
OpenThread
Zigbee®

IEEE 802.15.4
Optimized for STM32WBxx in UFQFPN and VFQFPN packages

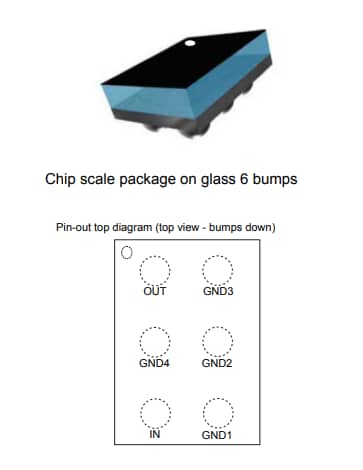

Pinout Diagram

STMicroelectronics MLPF-WB-01D3 2.4GHz Low Pass Filter
