STMicroelectronics MLPF-NRG-01D3 2.4GHz Low Pass Filter

STMicroelectronics MLPF-NRG-01D3 2.4GHz Low Pass Filter integrates an impedance-matching network and harmonics filter. The matching impedance network has been tailored to maximize the RF performances of BLUENRG-LP-LPS (BLUENRG-3x5Vx, BLUENRG-3x5Ax, BLUENRG-332xx) in QFN and CSP packages. This device uses STMicroelectronics IPD technology on a non-conductive glass substrate, optimizing RF performances.

Features

Integrated impedance matching to BLUENRG-LP-LPS (BLUENRG-3x5Vx, BLUENRG-3x5Ax, BLUENRG-332xx) in QFN and CSP packages
50Ω nominal impedance on the antenna side
Deep rejection harmonics filter
Low insertion loss

Small footprint
Low profile ≤ 630μm after reflow
High RF performances
RF BOM and area reduction
ECOPACK2 compliant component

Applications

BLUETOOTH® 5
OpenThread
Zigbee®
IEEE 802.15.4

Optimized for BLUENRG-LP-LPS (BLUENRG-3x5Vx, BLUENRG-3x5Ax, BLUENRG-332xx) in QFN and CSP packages

STMicroelectronics MLPF-NRG-01D3 2.4GHz Low Pass Filter

Features

Applications

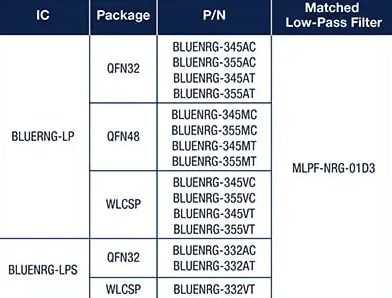

Solutions for BLUENRG RF ICs
