STMicroelectronics LPS22DF MEMS Nano Pressure Sensor

STMicroelectronics LPS22DF MEMS Nano Pressure Sensor is an ultra-compact piezoresistive absolute pressure sensor that functions as a digital output barometer. The LPS22DF provides lower power consumption, achieving lower pressure noise than its predecessor.

The device comprises a sensing element and an IC interface that communicates over I²C, MIPI I3CSM, or SPI interfaces from the sensing element to the application and supports a wide Vdd IO range for the digital interfaces as well. The sensing element, which detects absolute pressure, consists of a suspended membrane manufactured using a dedicated process developed by ST.

The STMicroelectronics LPS22DF is available in a full-mold, holed LGA package (HLGA). It is guaranteed to operate over a temperature range extending from -40°C to +85°C. The package is holed to allow external pressure to reach the sensing element.

Features

260hPa to 1260hPa absolute pressure range
Current consumption down to 1.7μA
0.5hPa absolute pressure accuracy
0.34Pa low-pressure sensor noise
0.45Pa/°C high-performance TCO
Embedded temperature compensation
24-bit pressure data output
ODR from 1Hz to 200Hz
SPI, I²C, or MIPI I3C^SM interfaces

Supports 1.08V digital interface
Embedded FIFO
Interrupt functions (Data-Ready, FIFO flags, pressure thresholds)
1.7V to 3.6V supply voltage
22,000g high shock survivability
Small and thin package
ECOPACK lead-free compliant

Applications

Altimeters and barometers for portable devices
GPS applications
Weather station equipment
Sport watches

e-cigarettes
Drones
Gas metering

STMicroelectronics LPS22DF MEMS Nano Pressure Sensor

Features

Applications

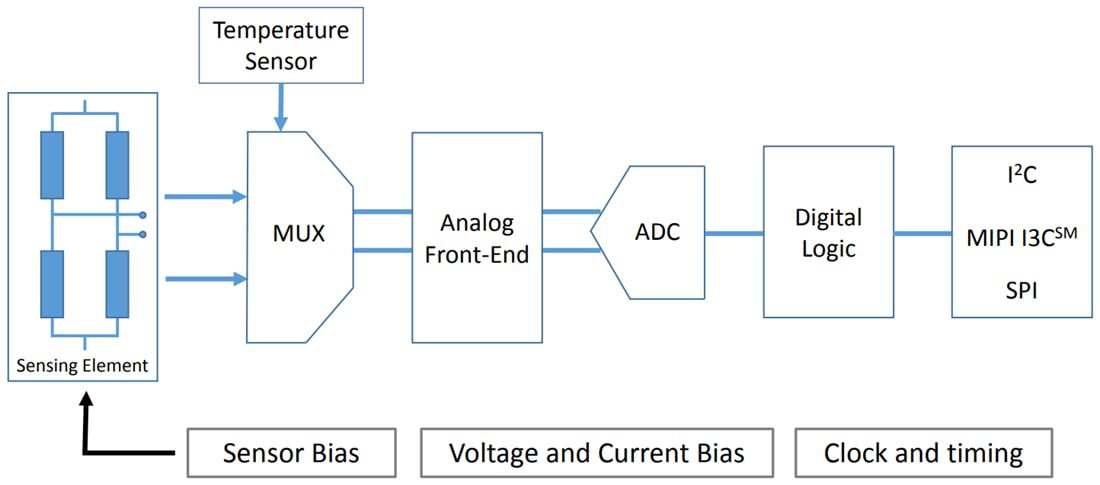

Block Diagram
