STMicroelectronics LDL40 200mA Low-Dropout (LDO) Voltage Regulator

STMicroelectronics LDL40 200mA Low-Dropout (LDO) Voltage Regulator is a high-accuracy voltage regulator designed to be directly connected to a car battery in automotive applications or a generic battery used in industrial applications. Extended input voltage up to 40V makes the device able to support a load dump transient, which is typical in automotive systems. Ultra-low quiescent current at light load increases the battery operation lifetime in always-on-standby systems.

The device is stabilized with a small ceramic capacitor on the input and output. An enable logic control function puts the STMicroelectronics LDL40 in shutdown mode, allowing a total current consumption lower than 0.3µA. Thermal protection is also included. The device is available in automotive grade in a very small footprint DFN package with wettable flanks, allowing the maximum space saving in the PCB (printed circuit board) design and AOI (automated optical inspection).

Applications

AEC-Q100 grade 1 qualified
- Operating temperature range of -40°C < T_J < 150°C
Input voltage from 3.3V to 40V
Dropout voltage (700mV typ. at 200mA load)
A low ground current of 2μA typ. at no load
Output voltage of 3.3V, 5.0V, or ADJ from 1.2V to 12V
±2.5% overtemperature, 0.5% at 25°C output voltage tolerance

200mA guaranteed output current
Power Good for fixed versions
Logic-controlled electronic shutdown
Internal current limit
Thermal shutdown
Output active discharge function
DFN6 (2mm x 2mm) wettable flanks package

Applications

EV powertrain
Always-on battery-connected application

Infotainment and instrument cluster
ADAS

Block Diagrams

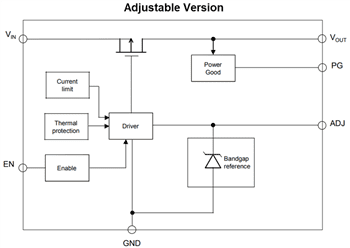

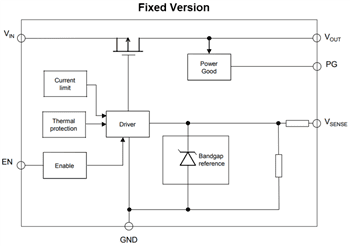

Block Diagram - STMicroelectronics LDL40 200mA Low-Dropout (LDO) Voltage Regulator
