STMicroelectronics L6982 Synchronous Step-down Converters

STMicroelectronics L6982 Synchronous Step-down Converters are easy-to-use monolithic regulators capable of delivering up to 2A DC to the load. The L6982 features a wide input voltage range of 3.5V to 38V, making the device suitable for a broad range of applications.

The STM L6982 Synchronous Step-down Converter offers both a low consumption mode (LCM) and a low noise mode (LNM) version. LCM maximizes the efficiency at light-load with a controlled output voltage ripple, so the device is suitable for battery-powered applications. LNM makes the switching frequency constant and minimizes the output voltage ripple for light load operations, meeting the specification for low noise-sensitive applications.

The L6982 has a peak current mode architecture and is available in a SO-8L package with internal compensation, minimizing design complexity and size.

Features

3.5V to 38V operating input voltage
Output voltage from 0.85V to V_IN
2A DC output current
Internal compensation network
Two different versions, LCM for high efficiency at light-loads and LNM for noise sensitive applications
2uA shutdown current

Internal soft-start
Enable
Overvoltage protection
Output voltage sequencing
Thermal protection
Synchronization to external clock for LNM devices
SO 8L package

Applications

Designed for 24V buses industrial power systems
24V battery powered equipment
Decentralized intelligent nodes

Sensors and always-on applications
Low noise applications

STMicroelectronics L6982 Synchronous Step-down Converters

Features

Applications

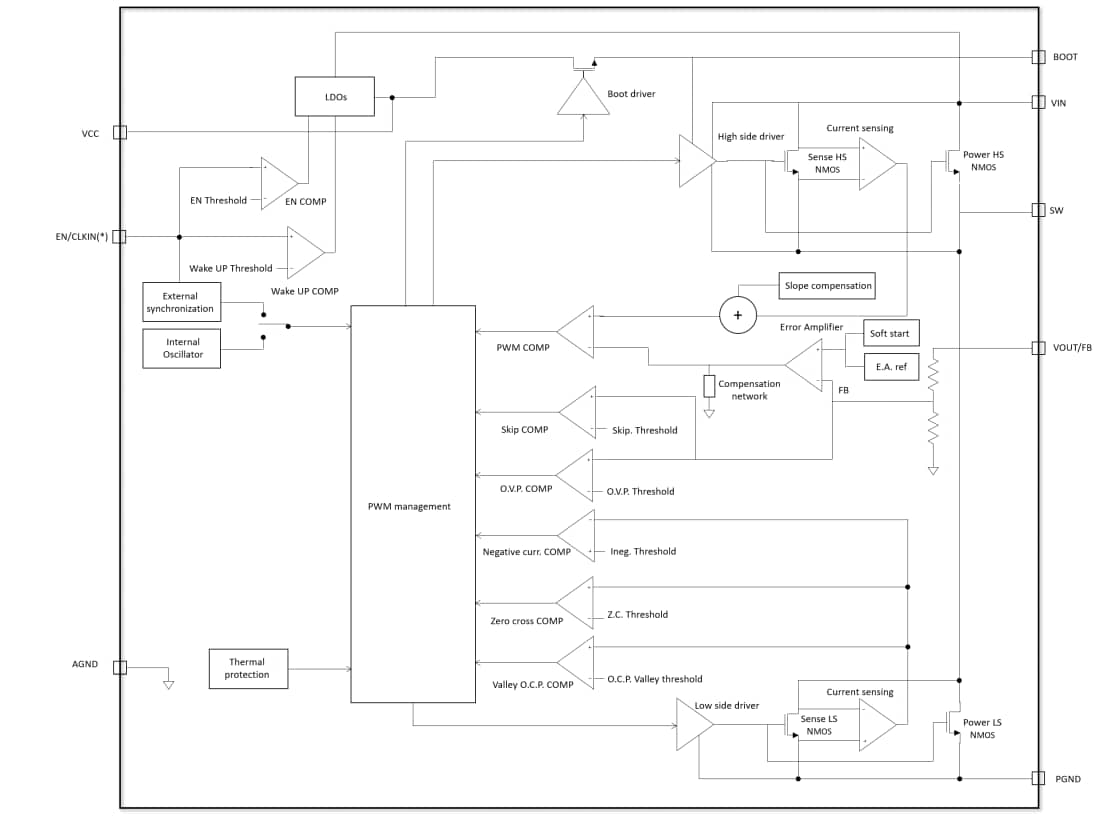

Block Diagram

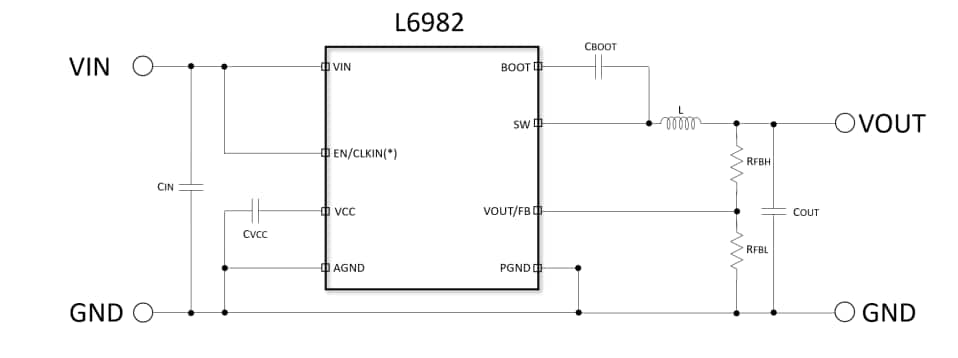

Basic Application (Adjustable)

Videos
