STMicroelectronics HSP181-2W3Y Automotive Dual-Line ESD Array

STMicroelectronics HSP181-2W3Y Automotive Dual-Line ESD Array is intended for high-speed differential lines. The VRM at 18V on the HSP181-2W3Y makes it ideal for short-to-battery hazards in vehicles. The HSP181-2W3Y is also compatible with the maximum signal voltage (18V) on the antenna of NFC readers and efficiently protects the NFC antenna I/O of NFC ICs. The 2.1pF low parasitic capacitance and the 1.7GHz bandwidth permits enough room to preserve the signal integrity of USB 2.0 or NFC signals.

The HSP181-2W3Y is available in a SOT323-3L package and operates at a -55°C to 150°C temperature range.

Features

  • AEC-Q101 qualified
  • Flow-through routing to keep signal integrity
  • 1.7GHz Large bandwidth
  • 2.1pF Ultra low capacitance
  • -55°C to +150°C Operating junction temperature range
  • RoHS compliant and halogen free
  • Complies with ISO 10605 – C=150pF, R=330Ω exceeds level 4
    • ±12kV (contact discharge)
    • ±30kV (air discharge)
  • Complies with ISO 10605 – C=330pF, R=330Ω
    • ±10kV (contact discharge)
    • ±30kV (air discharge)
  • Complies with ISO 10605 – C=330pF, R=2kΩ
    • ±30kV (contact discharge)
    • ±30kV (air discharge)

Applications

  • USB 1.1 and USB 2.0
  • NFC
  • Other high-speed signals

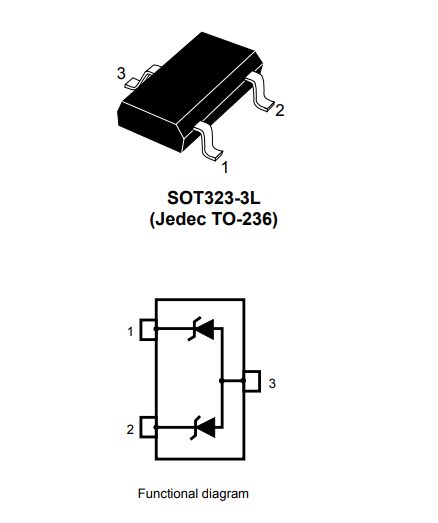

Functional DIagram

STMicroelectronics HSP181-2W3Y Automotive Dual-Line ESD Array
