STMicroelectronics EVSPIN32G06Q1S3 Evaluation Board

STMicroelectronics EVSPIN32G06Q1S3 Evaluation Board is a 3-phase complete inverter based on the STSPIN32G0601 controller, which embeds a 3‑phase 600V gate driver and a Cortex^®-M0+ STM32 MCU. The board exhibits a three-shunt sensing topology that is intended for a Field-Oriented Control (FOC) algorithm, in either censored or sensorless mode. This enables the driving of Permanent Magnet Synchronous Motors (PMSMs) and Brushless DC (BLDC) motors. The power stage in this eval board incorporates STGD6M65DF2 IGBTs but is adaptable to accommodate any IGBT or Power MOSFET in DPAK/powerFLAT 8×8 HV package. The EVSPIN32G06Q1S3 evaluation board supports a wide 35V_AC (50V_DC) to 280V_AC (400V_DC) input voltage range. Typical applications include residential and industrial refrigerator compressors, industrial drives, pumps, fans, home appliances, and industrial automation.

Features

Input voltage from 35V_AC (50V_DC) to 280V_AC(400V_DC) range
Suitable for ~250W applications, 1A_RMS phase current
STGD6M65DF2 IGBTs power stage featuring:
- V_(BR)CES= 650V
- V_CE(sat) = 1.55V @ I_C = 6A
Overcurrent threshold set to 3.5A_peak
Dual footprint for IGBT/MOSFET package:
- DPAK or PowerFlat 8×8 HV
Bus voltage sensing
RoHS compliant

Three-shunt current sensing, suitable for:
- Sensored or sensorless three-shunt vector (FOC) algorithm
15V VCC and 3.3V VDD supplies
Smart shutdown overcurrent protection
Digital Hall sensors and encoder input
External connection through STLINK-V3SET or STLINK/V2 debugger/programmer
Easy user interface with buttons and trimmer

Applications

Corded power tools and garden tools
Home appliances
Industrial automation

Residential and industrial refrigerator compressors
Industrial drives, pumps, and fans
Air conditioning compressors and fans

STMicroelectronics EVSPIN32G06Q1S3 Evaluation Board

Features

Applications

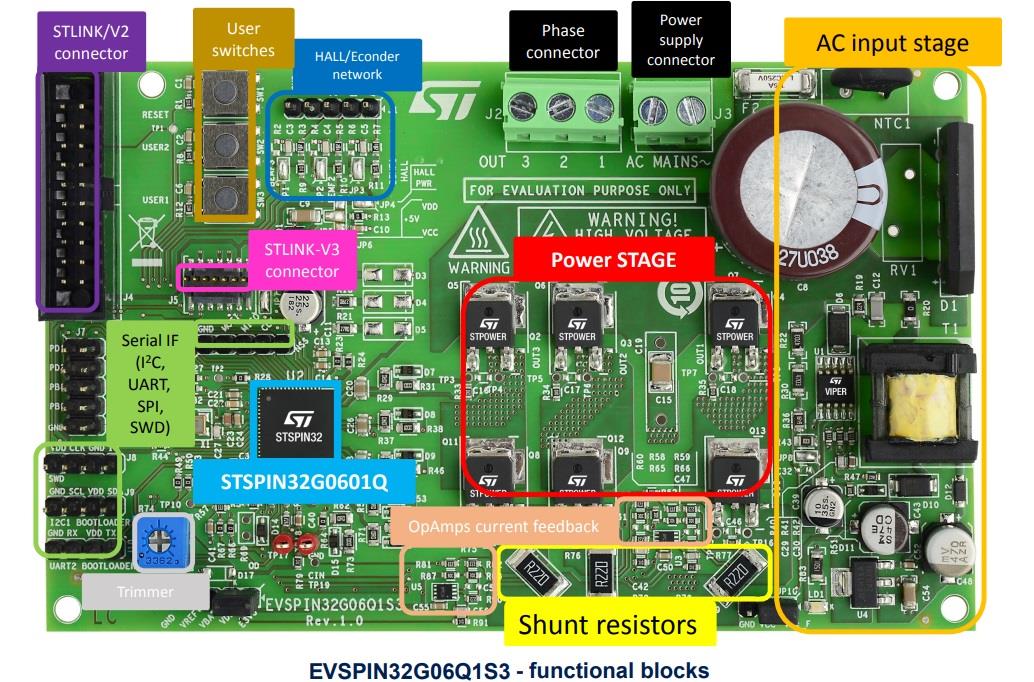

Board Layout
