STMicroelectronics EVSPIN32G06Q1S1 Evaluation Board

STMicroelectronics EVSPIN32G06Q1S1 Evaluation Board is a 3-phase complete inverter based on STSPIN32G0601 controller, which integrates a 3‑phase 600V gate driver and a Cortex^®-M0+ STM32 MCU. The power stage of this board incorporates STGD6M65DF2 IGBTs, but is adaptable to accommodate any IGBT or Power MOSFET in DPAK or powerFLAT 8×8 HV package. Employing a single-shunt sensing topology, this board supports both FOC and 6-step control algorithms in either sensored or sensorless mode. This versatility enables the driving of Permanent Magnet Synchronous Motors (PMSMs) and Brushless DC (BLDC) motors. The EVSPIN32G06Q1S1 evaluation board operates within a 35V_AC (50V_DC) to 280V_AC (400V_DC) input voltage range, and the overcurrent threshold is set to 2.8A_peak. Typical applications include refrigerator compressors, industrial drives, pumps, fans, home appliances, and industrial automation.

Features

Input voltage from 35V_AC (50V_DC) to 280V_AC(400V_DC) range
Suitable for ~250W applications, 1A_RMS phase current
STGD6M65DF2 IGBTs power stage featuring:
- V_(BR)CES= 650V
- V_CE(sat) = 1.55V @ I_C = 6A
Overcurrent threshold set to 2.8A_peak
Dual footprint for IGBT/MOSFET package:
- DPAK or PowerFlat 8×8 HV
Bus voltage sensing
External connection through STLINK-V3SET

Single-shunt current sensing, suitable for:
- Sensored or sensorless 6-step algorithm
- Sensored or sensorless single-shunt vector (FOC) algorithm
15V V_CC and 3.3V V_DD supplies
Smart shutdown overcurrent protection
Digital Hall sensors and encoder input
Easy user interface with buttons and trimmer
RoHS compliant

Applications

Residential and industrial refrigerator compressors
Industrial drives, pumps, and fans
Air conditioning compressors and fans

Corded power tools and garden tools
Home appliances
Industrial automation

STMicroelectronics EVSPIN32G06Q1S1 Evaluation Board

Features

Applications

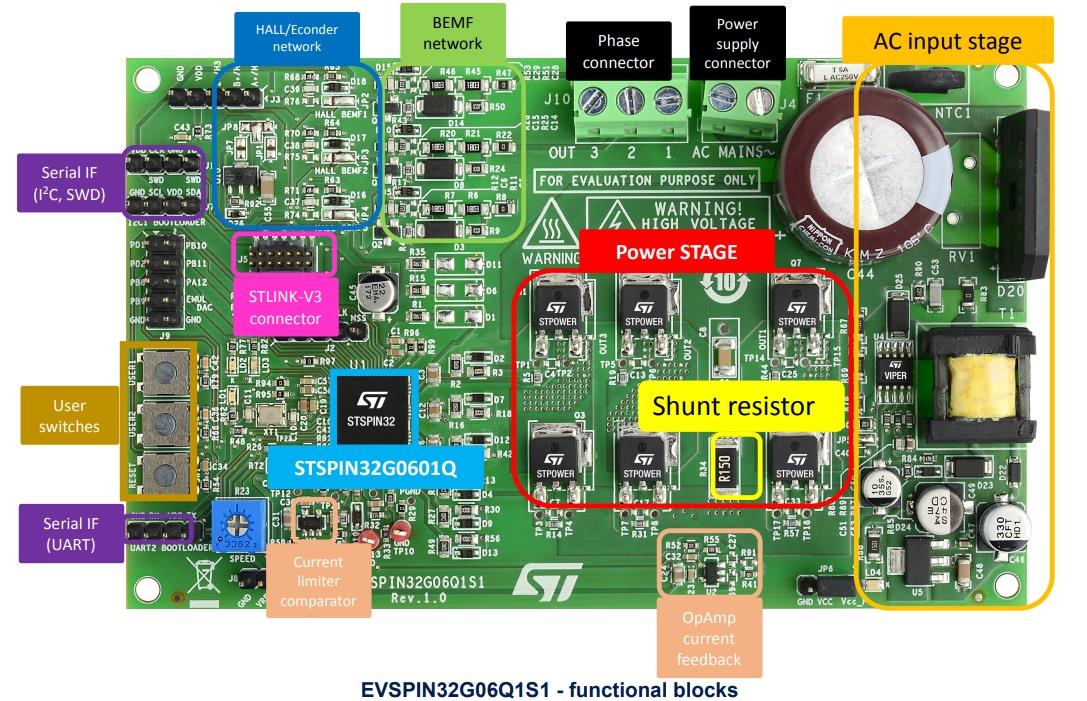

Board Layout
