STMicroelectronics EVLONEPCC USB Type-C™ Adapter

STMicroelectronics EVLONEPCC USB Type-C™ Adapter features a compact design that allows communication between ST-ONE (or ST-ONEMP) and STEVAL-PCC020V2. The STMicroelectronics EVLONEPCC uses the UART communication channel on the USB Type-C port of the EVLONEx board. To configure ST-ONE (or ST-ONE MP) parameters through the CC line, ST-ONE (or ST-ONEMP) must be programmed as APPL_SETUP: disabled, USART_ebable (UART mapping), or CC1/CC2 – programming mode: enabled.

Features

Full reference design for USB Type-C to 6-way female Picoflex IDC flat Ribbon cable adapter with USB Type-C connector and 6-way Picoflex connector
Useful to set ST-ONE and ST-ONEMP parameters through the UART channel when UART mapping is set on CC1/CC2

37.1mm x 13.4mm x 9.6mm (L x W x H) dimensions
It is possible to communicate between ST-ONE (or ST-ONEMP) and STEVALPCC020V2 directly using the USB Type-C port of the EVLONEx board

STMicroelectronics EVLONEPCC USB Type-C™ Adapter

Features

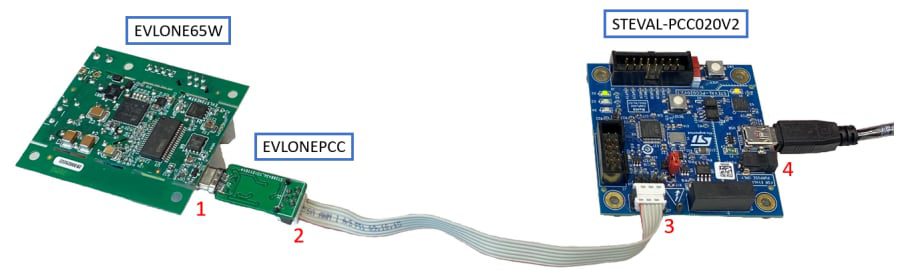

Adapter Connection
