STMicroelectronics EVLHV101SSR50W 50W Converter

STMicroelectronics EVLHV101SSR50W 50W Converter meets the demands of high-performance LED lighting systems. The STMicroelectronics EVLHV101SSR50W provides a stable and insulated 60V voltage at a maximum power of 50W. The board is ideal for many applications, from a standalone power supply to a front-end stage in dimmable or non-dimmable off-line LED drivers. The EVLHV101SSR50W delivers a high power factor, low THD, and low BOM cost.

Features

V_IN 90-265 V_RMS, f 45-66Hz input voltage
60V/833mA output voltage
High power factor, low THD
Efficiency > 50% in stand-by (P_OUT = 240mW)
4 points (25%, 50%, 75%, 100% load) average efficiency > 91%

Frequency foldback with valley locking for noise-free operation
T_AMB-MAX = 60°C
Open load voltage limiting (< 65V)
Short-circuit protection with auto restart
NTC overtemperature protection for switching MOSFET
RoHS compliant

Applications

Standalone power supply
Front-end stage in dimmable or non-dimmable off-line LED drivers
High-performance LED lighting systems

High-efficiency lighting systems that require maximum performance and reliability
LED lighting systems that require low THD and low BOM cost

STMicroelectronics EVLHV101SSR50W 50W Converter

Features

Applications

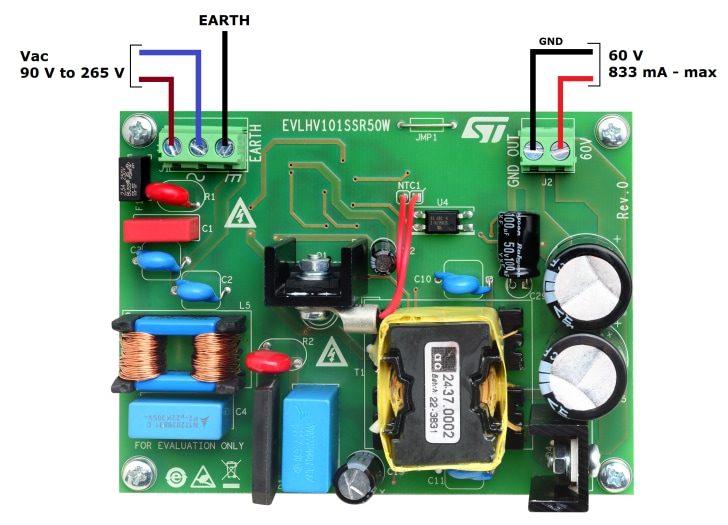

Connector map
