STMicroelectronics BlueNRG-LPS Programmable BLUETOOTH® Wireless SoCs

STMicroelectronics BlueNRG-LPS Programmable BLUETOOTH® Wireless System-on-Chips (SoCs) are ultra-low-power BLUETOOTH Low Energy wireless SoC solutions. These devices embed STMicroelectronics’s state-of-the-art 2.4GHz radio IPs (optimized for ultra-low-power consumption and excellent radio performance) for unparalleled battery lifetime. BlueNRG-LPS SoCs comply with BLUETOOTH Low Energy SIG core specification version 5.3, addressing point-to-point connectivity and BLUETOOTH Mesh networking, allowing reliable large-scale device networks to be established. The BlueNRG-LPS is also suitable for 2.4GHz proprietary radio wireless communication for ultra-low latency applications.

The BlueNRG-LPS embeds an Arm® Cortex®-M0+ microcontroller that operates up to 64MHz and the BlueNRG core co-processor (DMA-based) for BLUETOOTH Low Energy timing critical operations. Enhanced security hardware support is provided by dedicated hardware functions. These devices support standalone (operating as a single device in the application for managing the application code and the BLUETOOTH Low Energy stack) or network processor applications.

Operating within a -40°C to +105°C temperature range, the STMicroelectronics BlueNRG-LPS SoCs feature a 1.7V to 3.6V power supply range. BlueNRG-LPS embeds high-speed/flexible memory types, a 12-bit ADC, battery monitoring, and a temperature sensor. The devices offer a low-power RTC and three general-purpose 16-bit timers. BlueNRG-LPS Programmable BLUETOOTH Wireless SoCs are available in a QFN-32 or a WLCSP-36 package with support for up to twenty I/Os.

Features

BLUETOOTH Low Energy system-on-chip supporting BLUETOOTH 5.3 specifications
- 2Mbps data rate
- Long-range (coded PHY)
- Advertising extensions
- Channel selection algorithm #2
- GATT caching
- Direction finding (AoA/AoD)
- LE Ping procedure
- Periodic advertising and periodic advertising sync transfer
- LE L2CAP connection-oriented channel
- LE power control and path loss monitoring

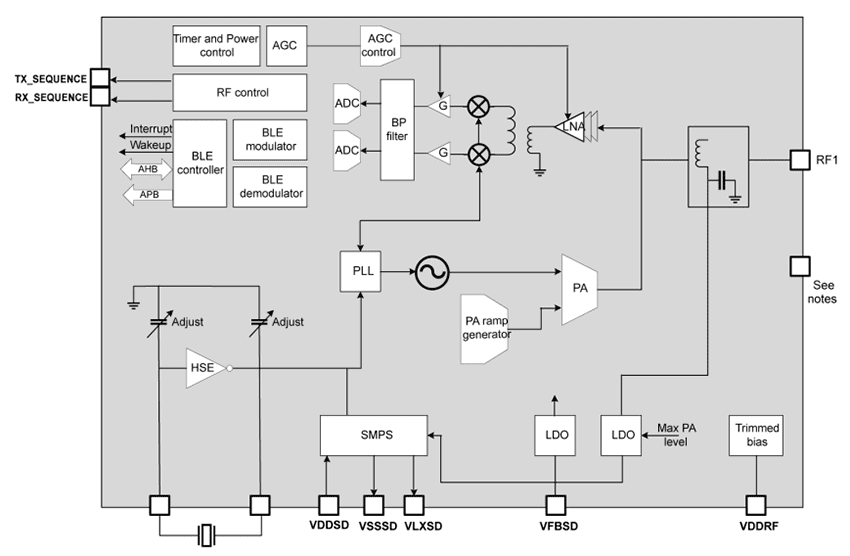

Radio
- RX sensitivity level
  - -97dBm at 1Mbps
  - -104dBm at 125kbps (long range)
- Programmable output power up to +8dBm (at antenna connector)
- 2Mbps, 1Mbps, 500kbps, and 125kbps supported data rates
- 128x physical connections
- Integrated balun
- Support for external PA and LNA
- BlueNRG core coprocessor (DMA-based) for BLUETOOTH Low Energy timing critical operation
- 2.4GHz proprietary radio driver
- Suitable for systems requiring compliance with the following radio frequency regulations: ETSI EN 300 328, EN 300 440, FCC CFR47 part 15, and ARIB STD-T66
Ultra-low power radio performance
- 8nA in SHUTDOWN mode (1.8V)
- 0.8µA in DEEPSTOP mode (with external LSE and BLE wake-up sources, 1.8V)
- 1.0µA in DEEPSTOP mode (with internal LSI and BLE wake-up sources, 1.8V)
- 4.3mA peak current in TX (at 0dBm, 3.3V)
- 3.4mA peak current in RX (at sensitivity level, 3.3V)
High performance and ultra-low power Arm® Cortex®-M0+ 32-bit, running up to 64MHz
14µA/MHz dynamic current consumption
1.7V to 3.6V operating supply voltage range
-40°C to +105°C temperature range
Supply and reset management
- High-efficiency embedded SMPS step-down converter with intelligent bypass mode
- Ultra-low power power-on-reset (POR) and power-down-reset (PDR)
- Programmable voltage detector (PVD)
192kB on-chip non-volatile Flash memory
On-chip RAM of 24kB + 4kB PKA RAM

Clock sources
- 64MHz PLL
- Fail-safe 32MHz crystal oscillator with integrated trimming capacitors
- 32kHz crystal oscillator
- Internal low-power 32kHz RO
One-time-programmable (OTP) memory area of 1kB
Embedded UART bootloader
Ultra-low power modes with or without timer and RAM retention
Quadrature decoder
Enhanced security mechanisms
- Flash read/write protection
- SWD disabling
- Secure bootloader
Security
- True random number generator (RNG)
- Hardware encryption AES maximum 128-bit security co-processor
- HW public key accelerator (PKA)
- RSA, Diffie-Helman, and ECC over GF(p) cryptographic algorithms
- CRC calculation unit
- 64-bit unique ID

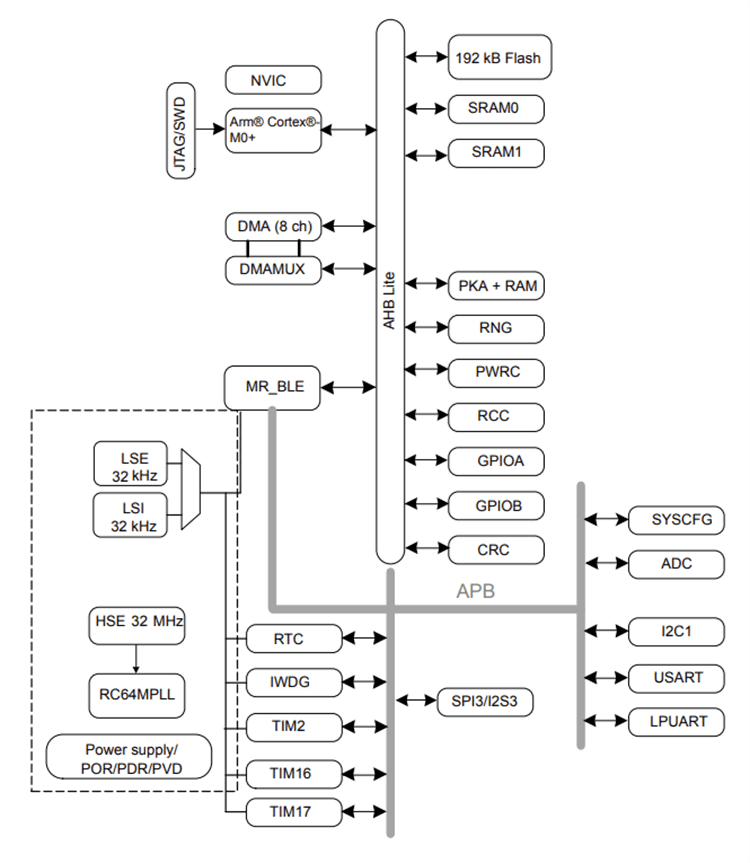

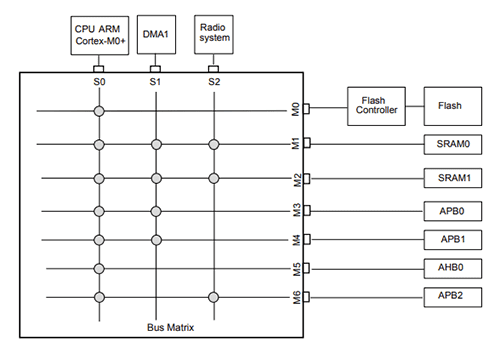

System peripherals
- 1x DMA controller with 8x channels supporting ADC, SPI-I²S, I²C, USART, LPUART, and TIMERS
- 1x SPI with I²S interface multiplexed
- 1x I²C (SMBus/PMBus)
- 1x LPUART (low power)
- 1x USART (ISO 7816 smartcard mode, IrDA, SPI Master, and Modbus)
- 1x independent WDG
- 1x real-time clock (RTC)
- 1x independent SysTick
- 1x 16-bit, four-channel general-purpose timer
- 2x 16-bit, two-channel general-purpose timer
- Infrared interface
Up to 20x fast I/Os
- Wake-up capability
- Retain state in low-power
- 5V tolerant
Analog peripherals
- 12-bit ADC with 8x input channels, up to 16-bits with down sampler
- Battery monitoring
- Analog watchdog
Development support
– Serial wire debug (SWD)
– 4x breakpoints and 2x watchpoints
ECOPACK2 compliant
