STMicroelectronics AIS2IH MEMS Digital Output Motion Sensors

STMicroelectronics AIS2IH MEMS Digital Output Motion Sensors is an ultra-low-power three-axis linear accelerometer that leverages the robust manufacturing process used to produce micromachined accelerometers and designed to address non-safety automotive applications. The AIS2IH MEMS Sensors feature user-selectable full scales of ±2g/±4g/±8g/±16g and is capable of measuring accelerations with output data rates from 1.6Hz to 1600Hz.

The STM AIS2IH MEMS Digital Output Motion Sensors includes an integrated 32-level first-in, first-out (FIFO) buffer that allows the user to store data to limit intervention by the host processor. The AIS2IH provides broad flexibility to applications as it can switch from ultra-low-power modes to high-resolution, high-performance modes on the fly. The embedded self-test capability enables the user to check the functioning of the sensor in the final application.

Features

AEC-Q100 qualified
±2g/±4g/±8g/±16g dynamically selectable full scales
Low power consumption down to 110µA in high-performance mode and 0.67µA @ 1.6Hz in low-power mode
Very low noise: down to 90µg/√(Hz) in high-performance mode
Multiple operating modes with multiple bandwidths and resolution
Single data conversion on demand
High-speed I²C/SPI digital output interface

32-level FIFO
2 independent programmable interrupts
Extended temperature range of -40°C to 115°C
Supply voltage 1.62V to 3.6V
Independent IO supply
Embedded temperature sensor
Self-test
10000g high shock survivability
ECOPACK, RoHS and “Green” compliant

Applications

Tilt / inclination measurement
Telematics and black boxes
In-dash car navigation
Anti-theft devices

Smart power saving
Motion-activated functions
Impact recognition and logging

STMicroelectronics AIS2IH MEMS Digital Output Motion Sensors

Features

Applications

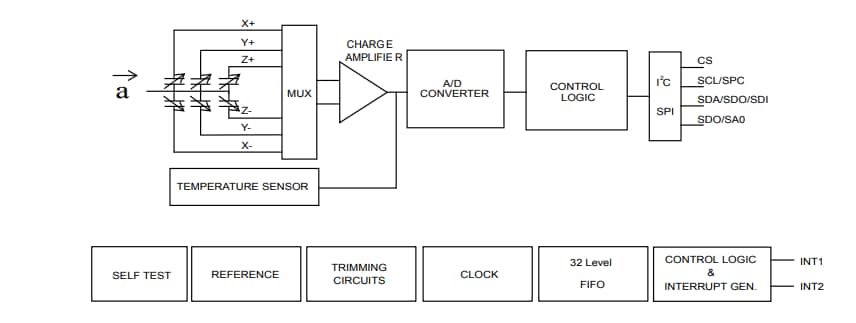

Block Diagram
