STMicroelectronics AEK-POW-LDOV01J Evaluation Board

STMicroelectronics AEK-POW-LDOV01J Evaluation Board is engineered for the L99VR01JTR. The L99VR01 LDO Linear Voltage Regulator is designed for automotive applications and is available in SO-8 and PowerSSO-12 packages. The device is ideal for several electronic applications, such as microcontroller supplies, automotive display drivers, sensors, and infotainment processors.

The STM AEK-POW-LDOV01J Evaluation Board offers a thermal performance of up to 170°C, making it suitable for electronic applications with high-temperature environments and applications requiring stable power supplies.

Features

  • Eight selectable fixed output voltages: (0.8V, 1.2V, 1.5V, 1.8V, 2.5V, 2.8V, 3.3V, and 5V) with up to 200mA load current capability
  • Protection and diagnostics features:
    • Enable pin
    • Reset
    • Watchdog
    • Advanced thermal warning with output overvoltage detection
    • In-short control
    • Fast output discharge

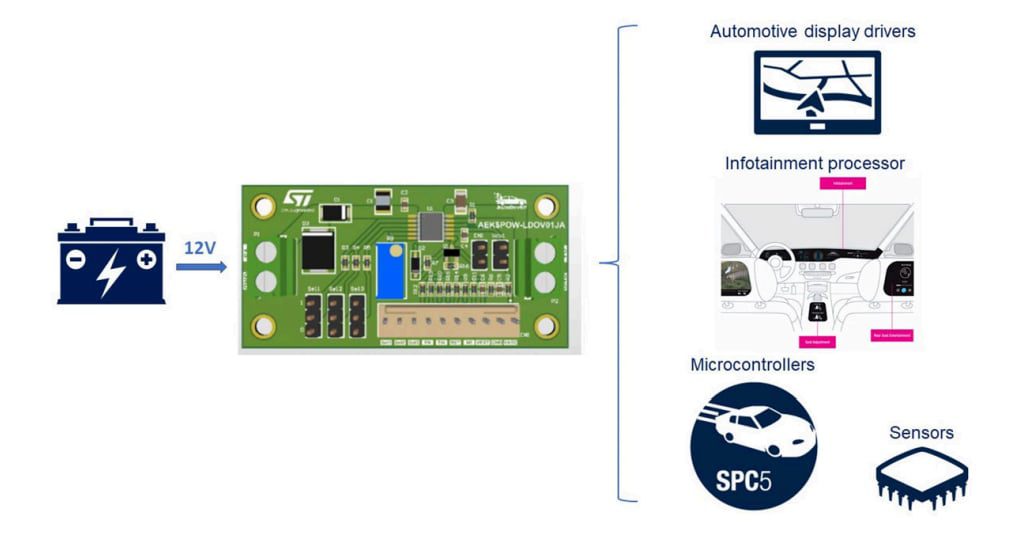

Block Diagram

Block Diagram - STMicroelectronics AEK-POW-LDOV01J Evaluation Board

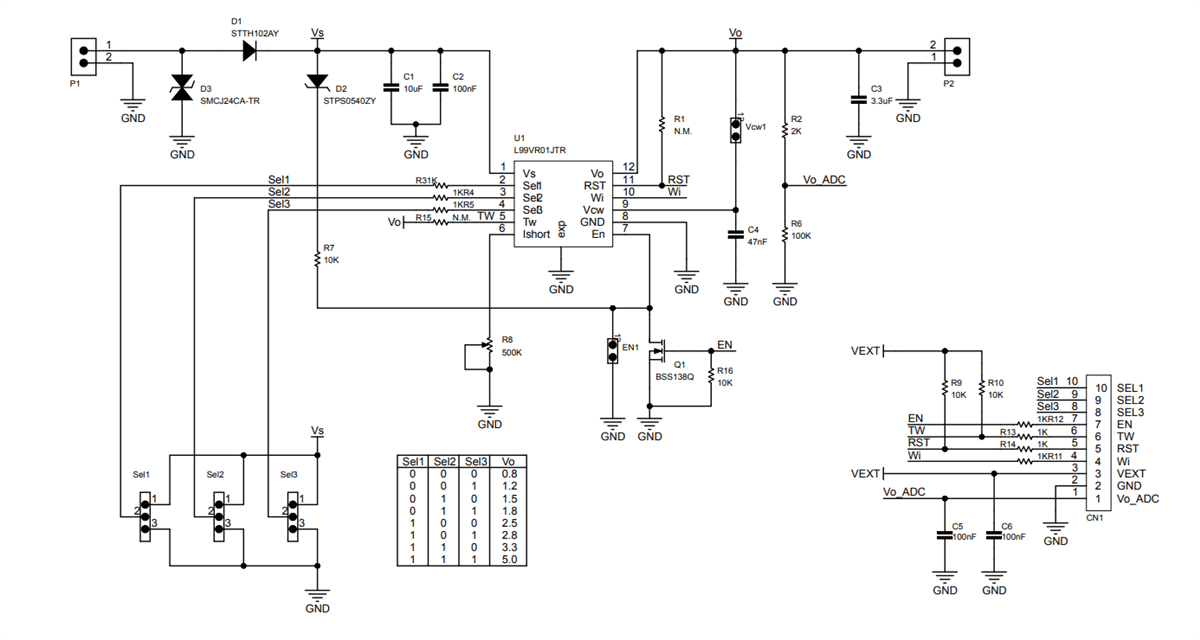

Schematic

Schematic - STMicroelectronics AEK-POW-LDOV01J Evaluation Board
