STMicroelectronics AEK-POW-100W4V1 DC-DC Converter Board

STMicroelectronics AEK-POW-100W4V1 Digitally Controlled DC-DC Converter Board is compact and designed for automotive and transportation applications, enabling the regulation of the output voltage in two different modes. The two modes are fixed output and PPS (Programmable Power Supply) with 20mV steps.

The STM AEK-POW-100W4V1 Converter Board allows the output current to set from a minimum of 0.05A and a maximum of 5A for the entire output voltage range with 50mA steps. The AEK-POW-100W4V1 includes several protection systems, including short-circuit, overcurrent, and thermal protection. The AutoDevKit software library includes dedicated components able to configure and drive the board from ST microcontrollers.

Features

Up to 100W power on a single DC-DC channel
Input voltage range of 6V to 26V
MCU selectable fixed outputs of 3.3V, 5V, 9V, 15V, 20V
Programmable max output current up to 5A with steps of 50mA

Programmable output voltages of 20mV steps from 3.3V to 11V
Short circuit, over-current, thermal protections
Size of 84.7mm x 81.3mm
Included in AutoDevKit initiative
RoHS compliant

Applications

USB power delivery up to 100W
Baby milk bottle warmer
Mini-fridge

Laptop car charger
In-car mini hair dryer
In-vehicle power conversions

STMicroelectronics AEK-POW-100W4V1 DC-DC Converter Board

Features

Applications

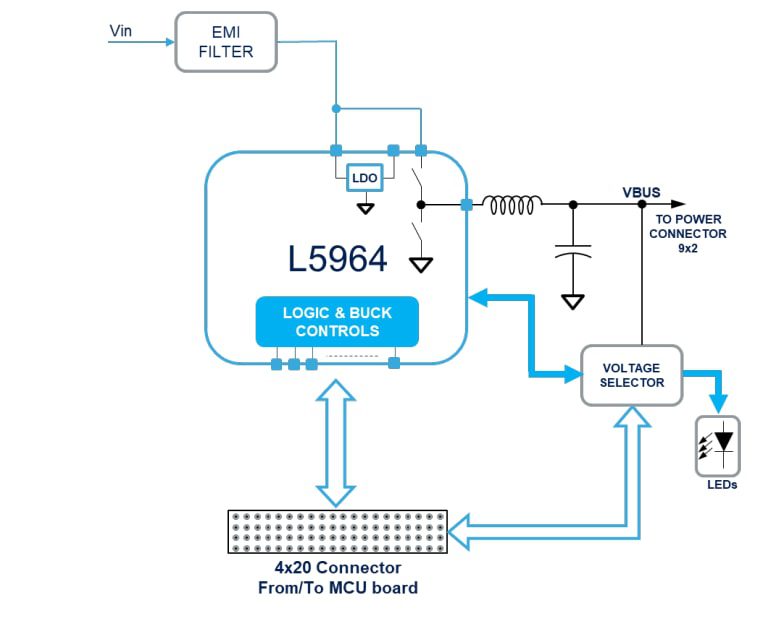

Block Diagram
