STMicroelectronics AEK-MOT-TK200G1 Power Liftgate Controller Board

STMicroelectronics AEK-MOT-TK200G1 Power Liftgate Controller Board is a zone controller for power liftgate applications. The two primary devices hosted are the L99DZ200G automotive grade multioutput driver and the SPC582B60E1 Chorus 1M automotive-grade microcontroller. The L99DZ200G has two H-bridge gate drivers that control an external MOS tuned for the power liftgate application actuations. The device can drive up to three DC motors simultaneously (SPINDLE) and one by itself (CINCH).

Features

Hosts the automotive-grade L99DZ200G multioutput drivers and the SPC582B60E1 Chorus 1M automotive microcontroller
Controls up to three DC motors via the L99DZ200G H-bridge gate drivers
Supports two additional high-side outputs to drive bulbs, relays, and LEDs

Supports CAN bus interface for remote control
Open-load and overcurrent detection
Thermal warning and thermal shutdown protection
Size 100mm x 83mm
Included in the AutoDevKit ecosystem

STMicroelectronics AEK-MOT-TK200G1 Power Liftgate Controller Board

Features

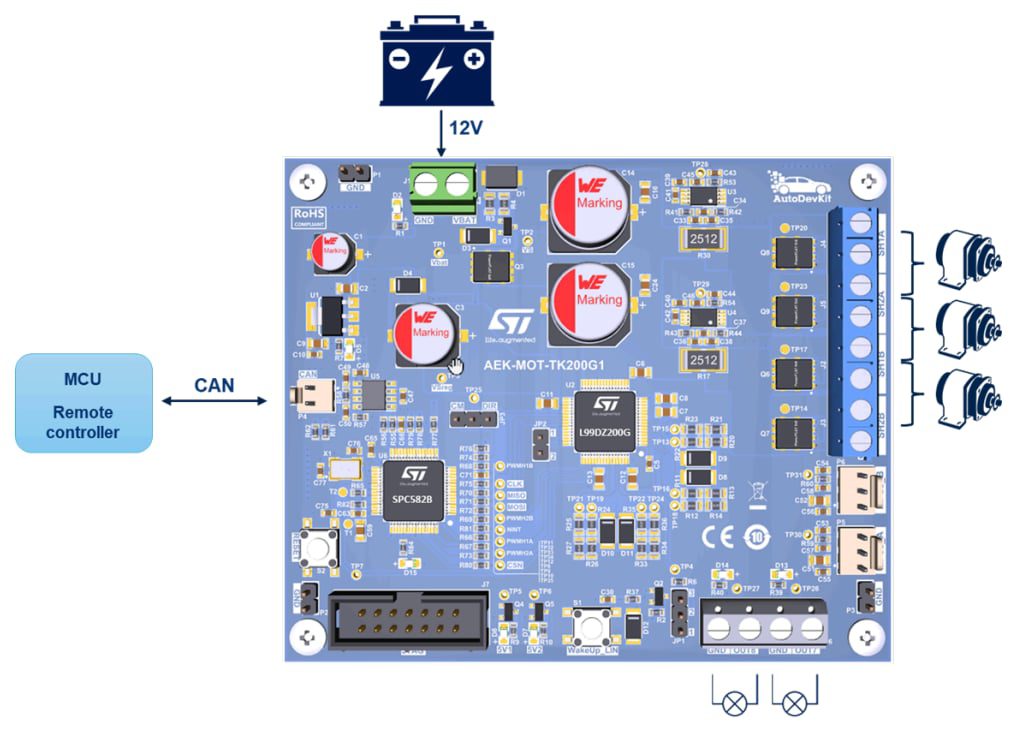

Block Diagram
