Stewart Connector / Bel RJ Modular Bottom Entry Vertical Jack

Stewart Connector / Bel RJ Modular Bottom Entry Vertical Jack supports the transmission of Gigabit Ethernet signals targeted to switches, hubs, and routers. This bottom-entry jack is designed for small form factor designs and allows interconnecting between PC boards, leaving the valuable space of board edges free for other I/O connectivity. Bel RJ Modular Bottom Entry Vertical Jack is suitable for various environments, including medical, industrial, military, railway, and space.

Features

  • Suitable for space-constrained designs
  • Allows cable entry close to PC board
  • Can be located anywhere on the board’s surface area

Applications

  • eMobility
  • Front end
  • Industrial
  • Medical
  • Military
  • Railway
  • Space

Specifications

  • Vertical orientation
  • 1 port
  • Unshielded design
  • No LED
  • 8 positions
  • 8 contacts

Dimensions

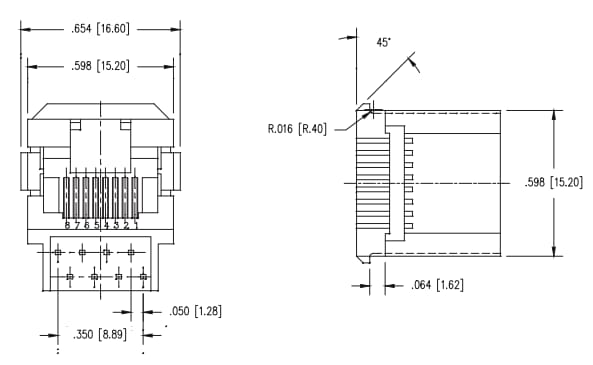

Mechanical Drawing - Stewart Connector / Bel RJ Modular Bottom Entry Vertical Jack
