StereoPi v2 Camera Interface Boards

StereoPi v2 Camera Interface Boards are open-source stereoscopic cameras based on Raspberry Pi that can capture, save, live-stream, and process real-time stereoscopic video and images. These boards act as the ultimate interface between two cameras and a Raspberry Pi Compute Module. The StereoPi v2 Standard board is populated with Ethernet, dual USB ports, GPIO-header, microSD slot, and HDMI-output, whereas StereoPi v2 Slim comes as a plain interface-board. To use these boards, the user needs Raspberry Pi Compute Module, cameras, and camera ribbon cables. Two short power cables and three jumpers already included. Typical applications include robotics, computer vision, AR/VR, drone instrumentation, and panoramic video.

Features

Open-source stereoscopic cameras based on Raspberry Pi
Able to capture, save, live-stream, and process real-time stereoscopic video and images
Act as ultimate interface between two cameras and a Raspberry Pi Compute Module
The v2 standard board comes populated with Ethernet, dual USB ports, GPIO-header, microSD slot, and HDMI-output

Applications

Computer vision/robotics
Stereoscopic photography/video
Panoramic video

Virtual Reality (VR)
Augmented Reality (AR)
Drone instrumentation

Kit Contents

StereoPi v2 Standard:
- 1 x StereoPi Slim
- 2 x short power cable
- 3 x 2.54mm jumpers

StereoPi v2 Slim:
- 1 x StereoPi Standard
- 2 x short power cable
- 3 x 2.54mm jumpers

Overview

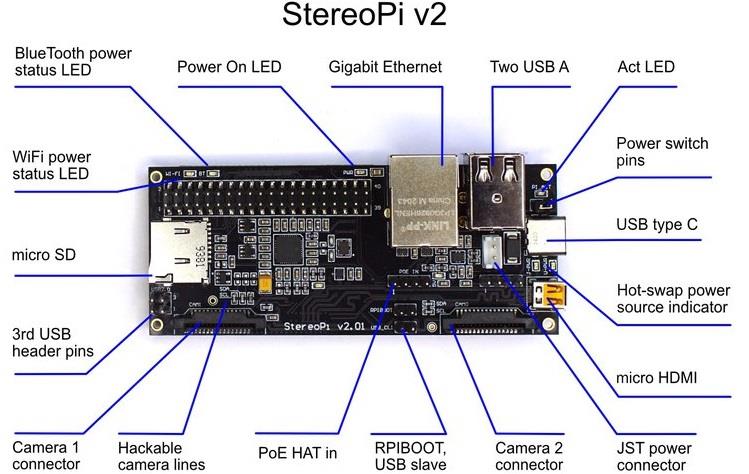

Chart - StereoPi v2 Camera Interface Boards

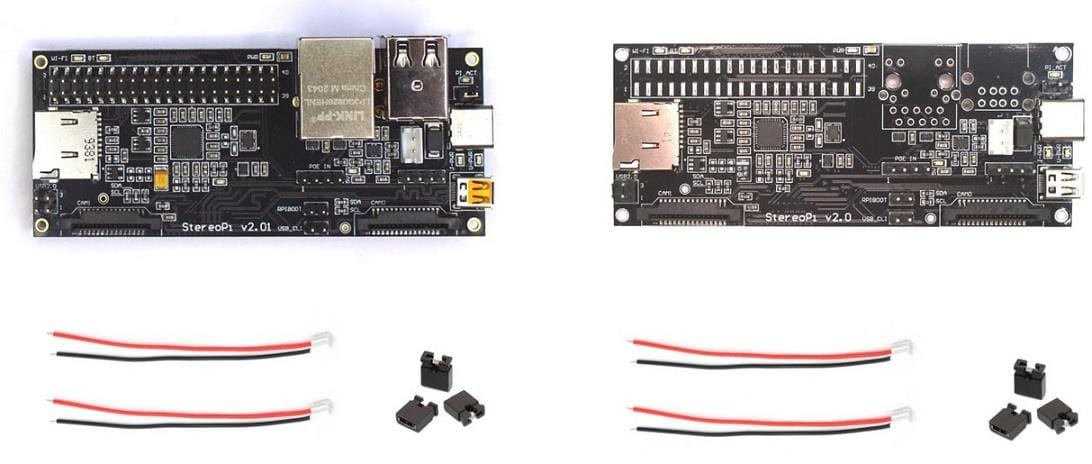

Standard vs Slim Board Comparison

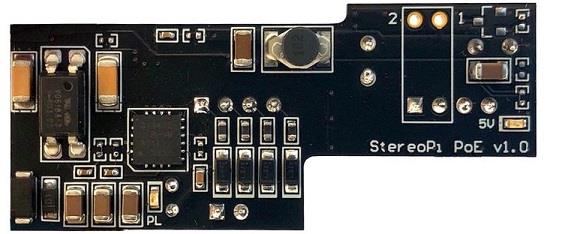

StereoPi v2 PoE HAT Board

StereoPi v2 PoE HAT Board is a tiny shield for the StereoPi v2 that adds the Power over Ethernet option to the setup.
