Stanley Electric UV-A LEDs

Stanley Electric UV-A LEDs provide excellent radiometric power with peak wavelengths from 365nm to 405nm. These LEDs are designed for applications such as phototherapy, forensics, and horticulture. UV-A LEDs are also commonly used in UV curing, with applications ranging from 3D printing to dentistry.

The Stanley Electric UV-A LEDs are housed in a compact 3.5mm x 3.5mm x 2.05mm package.

Features

  • 365nm to 405nm peak wavelength
  • 950mW to 1100mW light output
  • 9nm to 12nm spectral half-width
  • 130°, 130° half intensity angle (X/Y)
  • 3.4V to 3.6V forward voltage
  • 500mA continuous forward current
  • -10°C to +85°C operating temperature range
  • 3.5mm x 3.5mm x 2.05mm package
  • Lead–free soldering compliant
  • RoHS2 compliant

Applications

  • Curing
  • 3D Printing
  • Phototherapy
  • Horticulture
  • Counterfeit detection
  • Forensics

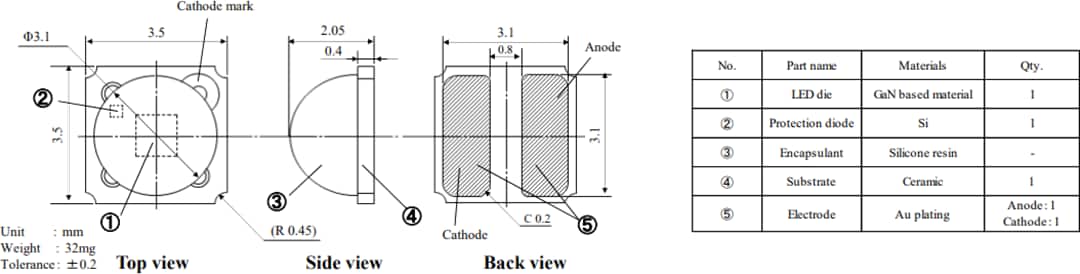

Package Outline

Mechanical Drawing - Stanley Electric UV-A LEDs
