SpotSee 5/6/8/10 Level Thermax® Temperature Indicators

SpotSee 5/6/8/10 Level Thermax® Temperature Indicators are a simple, cost-effective temperature monitoring program solution based on proprietary color change technologies. The easy-to-read self-adhesive labels include a series of temperature-sensitive elements sealed between heat-resistant substrates with transparent windows.

Each element changes color distinctly as its rated temperature is exceeded on the SpotSee 5/6/8/10 Level Thermax Temperature Indicators. The changes are irreversible, delivering a temperature history of the surface being monitored. The indicators will not de-laminate when removed for reference and allow them to be attached to an inspection report as a permanent record.

Features

10 Units/Packs
°F and °C Scale
Self-adhesive
2.00” x 0.7” (51mm x 18mm) Vertical (5, 8, 10 level)
0.47” x 1.26” (12mm x 32mm) Horizontal (6 level)

Clear color change shows maximum temperature experienced
Permanent record of highest temperature
Immediate response to temperature
Cost-effective temperature monitoring solution
Oil, water, and steam resistant

Applications

Warranty claims
Process validation

Preventative maintenance
Proof of drying, curing, and bonding

Specifications

Accuracy
- ±1°C / ±2°F (29°C to 99°C range)
- ±1.5°C / ±3°F (100°C to 154°C range)
- ±1% +1°C / ±1% ±2°F (160°C to 290°C range)

29°C to 290°C Temperature range
Clear to black visual indication
Store in a cool dry space, below the lowest temperature level

SpotSee 5/6/8/10 Level Thermax® Temperature Indicators

Features

Applications

Specifications

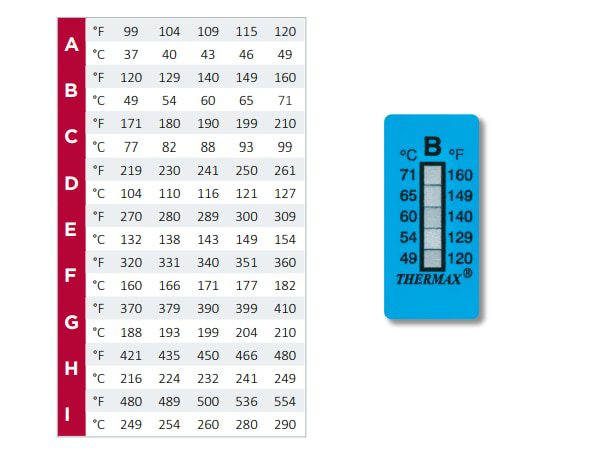

5 Level Chart

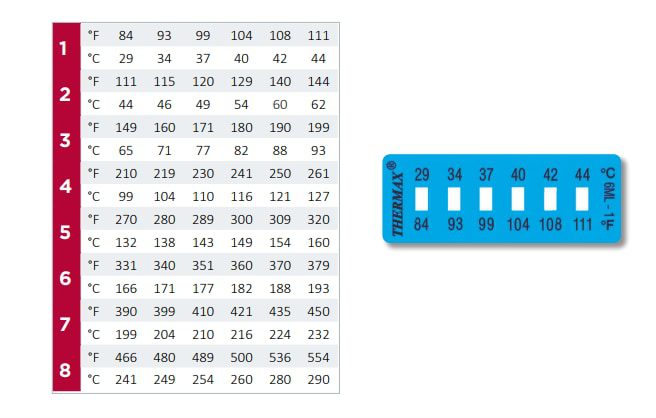

6 Level Chart

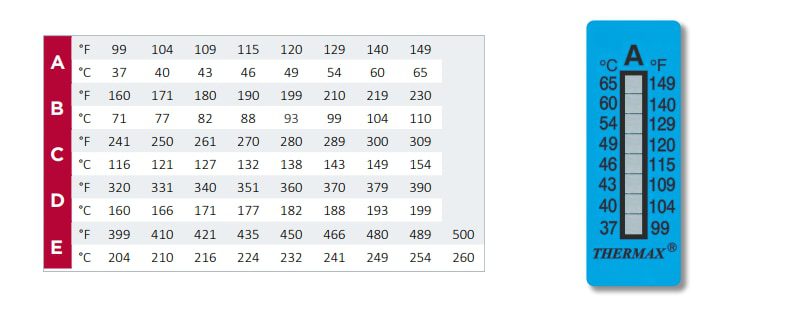

8 Level Chart

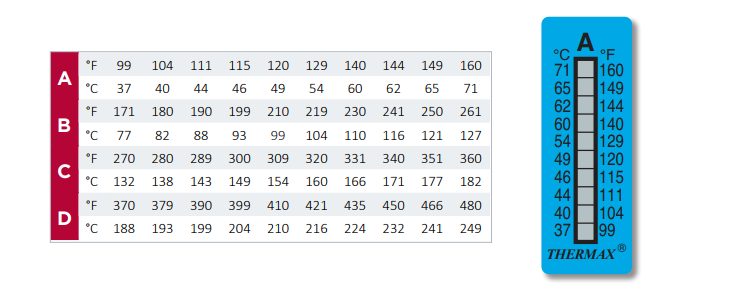

10 Level Chart
