Spectra Symbol MagnetoPot Potentiometers

Spectra Symbol MagnetoPot Potentiometers are contactless linear position sensors that track motion and liquid-level measurement. These potentiometers offer full linear travel as a magnetic sensor and provide control input or sensing solutions for a fraction of the competing magnetic sensor cost. The MagnetoPot potentiometers feature a ±20% resistance tolerance, >1 million life cycle, 0.50Watt continuous, up to 85°C, and 1Watt peak power rating. These sensors are ideal for hydraulic and pneumatic position sensing and are available in IP64 rating.

Features

Contactless linear sensor
IP64 debris proof and splash proof
Ideal for hydraulic and pneumatic position sensing
Liquid level capability

Upon request:
- Male or female Nicomatic connectors
- Corresponding exterior magnet

Specifications

Resistance:
- 10kΩ (lengths >300mm = 20kΩ) standard
- 5kΩ to 500kΩ custom
±20% resistance tolerance
8mm to 1200mm effective electrical travel
Resolution:
- Depends on the exterior magnet strength and distance to the MagnetoPot
0.50Watt continuous and 1Watt Peak power rating

No affect @ 500V_AC for 1 minute dielectric value
±5% (±1% available) independent linearity
>1 million life cycle
3.50mm (0.138″) height
0.09lbs to 0.11lbs pull force at desired distance actuation force (pull force rating is for the exterior magnet using a test plate of cold rolled steel)

Spectra Symbol MagnetoPot Potentiometers

Features

Specifications

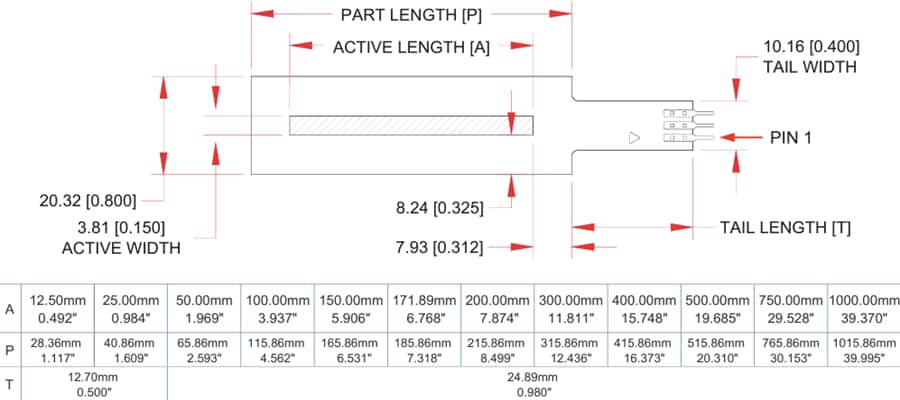

Stock Linear MagnetoPots- Dimension Diagram

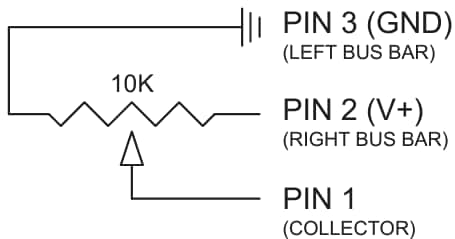

Electrical Schematic
