SparkFun Cryptographic Development Kit

SparkFun Cryptographic Development Kit is ideal for learning the fundamentals of cryptographic authentication and security. The kit includes a pair of Atmel ATECC508A Cryptographic Co-Processor Breakout Boards that adds strong authentication security to IoT node, edge device, or embedded systems. The board offers two Qwiic ports for plug and play functionality, and using the Qwiic system, no soldering is required. 0.1″-spaced pins are available for adding a breadboard.

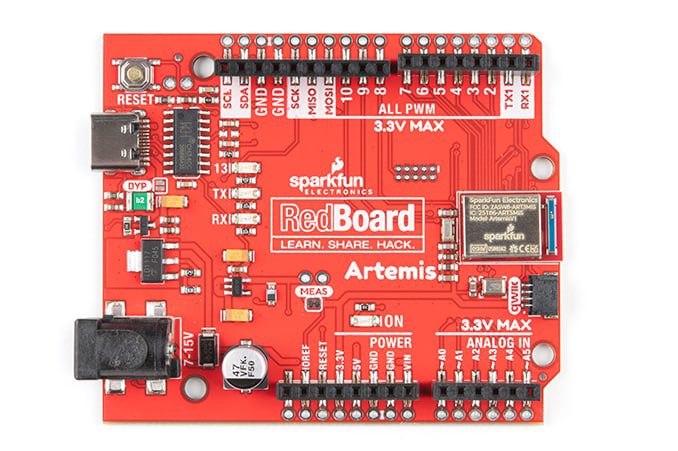

Additionally, the SparkFun Cryptographic Development Kit includes a pair of SparkFun RedBoard Artemis boards. The RedBoard Artemis provides BLE, one megabyte of flash, and runs at less than 1mA. The RedBoard Artemis takes the incredibly powerful Artemis module converted into an easy-to-use and familiar Uno footprint.

Features

Atmel ATECC508A chip
- Creating and securely storing unique asymmetric key pairs based on Elliptic Curve Cryptography (FIPS186-3)
- Creating and verifying 64-byte digital signatures (from 32-bytes of message data)
- Creating a shared secret key on a public channel via Elliptic Curve Diffie-Hellman Algorithm
- A standard hash-based challenge-response protocol using an SHA-256 algorithm
- Internal high-quality FIPS random number generator

Kit Contents

2x SparkFun Cryptographic Co-processor Breakout – ATECC508A (QWICC)
2x SparkFun Redboard Artemis
2x Reversible USB A to C Cable – 0.8m

2x Flexible Qwiic cable – 50mm
1x Jumper wires premium 6″ M/M – 20AWG (10 Pack)

Videos

Resources

RedBoard Artemis
- Schematic
- Eagle Files
- Apollo3 Datasheet
- Ambiq
- Hookup Guide
- Artemis Integration Guide
- Designing with the SparkFun Artemis
- Artemis Development with Arduino
- Arduino Core
- Artemis Info Page
- Artemis Forums
- GitHub Hardware Repo

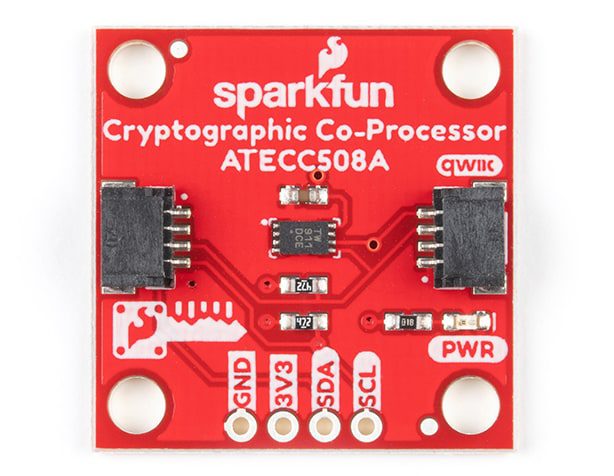

ATECC508A Cryptographic Co-Processor Breakout
- Schematic
- Eagle Files
- Board Dimensions
- Hookup Guide
- Datasheet (ATECC508A)
- Qwiic Information Page
- SparkFun ATECCX08A Arduino Library
- Github Hardware Repo

SparkFun Cryptographic Development Kit

Features

Kit Contents

Videos

Resources

Cryptographic Co-Processor Breakout

Redboard Artemis
