Soracom Global IoT Multi-Carrier ecoSIM Card

Soracom Global IoT Multi-Carrier ecoSIM Card offers 2FF mini, 3FF micro, and 4FF nano sizes. The secure connection of the ecoSIM card bypasses the public internet. The Soracom air cellular data plans provide options for 2G, 3G, 4G LTE, and Cat-M1 with coverage in 150 countries.

Features

Soracom Air Cellular data plans for 2G, 3G, 4G LTE, and Cat-M1 with coverage in 150 countries
Pay-as-you-go pricing – only ever pay only for the data used
A secure IoT connection that bypasses the public internet
Direct integration with AWS, Azure, and Google Cloud
Easy network control and management with the Soracom Console and API

Based on Soracom’s Plan01s
SIM sizes
- 2FF Mini 25mm x 15mm
- 3FF Micro 15mm x 12mm
- 4FF Nano 12.3mm x 8.8mm

Specifications

Software
- Java Card 3.0.2
- 3GPP Release 11
- OTA over SMS (SCP80)
- OTA over HTTPs: Global Platform 2.2 amendment B (SCP81)
- Java Card Cryptographic APIs
- CRC16, CRC32
- DES, 3DES
- AES 128/256 bits
- Soracom Subscription container applet
- Soracom Local information applet

Hardware
- 1.62V to 3.3V (Class B/C) Supply voltage
- 128Kbytes NVM (nonvolatile memory) available
- -25°C to +85°C Operating temperature
- Up to 10 years at 85°C data retention
- RoHS compliant

Soracom Global IoT Multi-Carrier ecoSIM Card

Features

Specifications

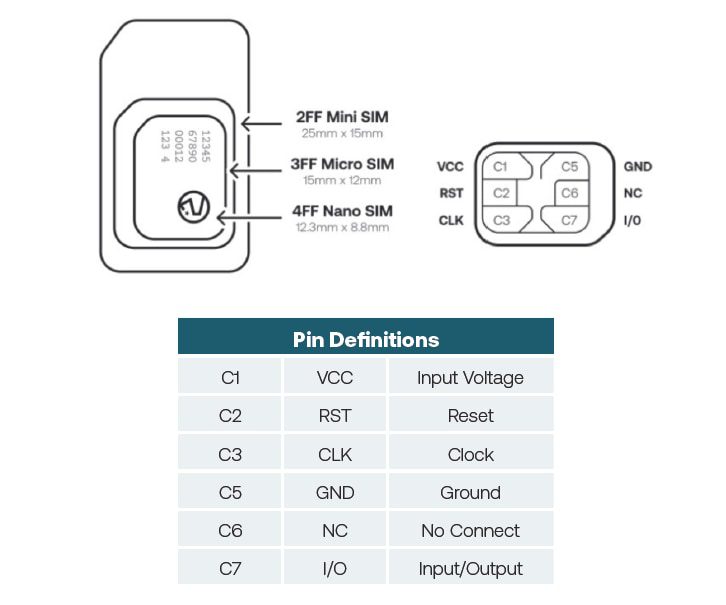

Mechanical Specifications

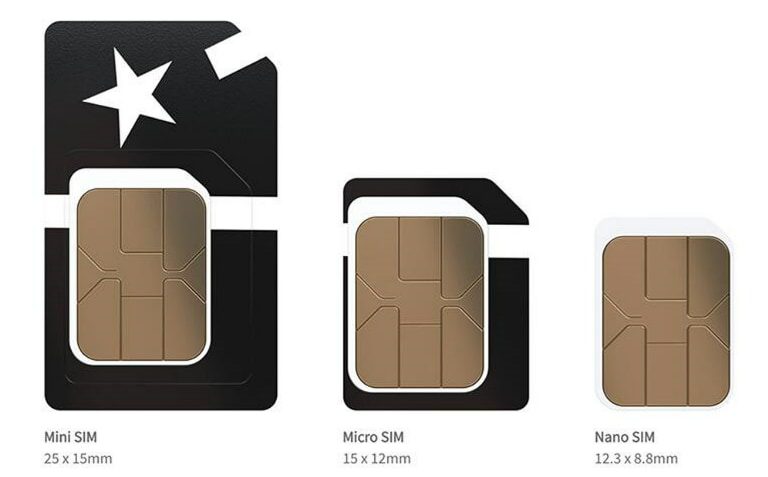

Form Factors
