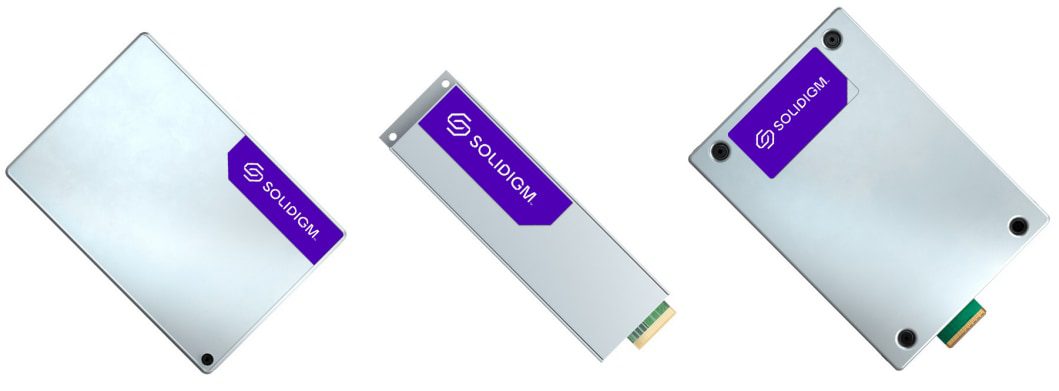

Solidigm D5-P5430 Solid State Drives

Solidigm D5-P5430 Solid State Drives (SSDs) reduce the Total Cost of Ownership (TCO) for mainstream and read-intensive workloads. These Solid State Drives are available in a wide range of form factors and capacities up to 30.72TB. The D5-P5430 drives are well-suited to be deployed in a broad array of 1U and 2U configurations. These D5-P5430 SSDs feature PCIe 4.0×4, NVMe 1.4c interface and are OCP 2.0 supported. The D5-P5430 drives include features essential to building modern data centers, such as FIPS 130-2 Level-2, secure boot, and industry-leading data reliability.

Specifications

Capacity and form factor:
- U.2 and E3.S:
  - 3.84TB, 7.68TB, 15.36TB, and 30.72TB
- E1.S:
  - 3.84TB, 7.68TB, and 15.36TB
Performance:
- Rand read / write:
  - Up to 971K / 120K IOPS
- Seq read / write:
  - Up to 7000MB/s / 3000MB/s

PCIe 4.0×4, NVMe 1.4c interface
192-Layer 3D QLC NAND media
Up to 5W idle power
Up to 25W active power
Up to 0.58DWPD and up to 32PBW endurance (100% rand write)
FIPS compliant
Five years warranty
OCP 2.0 supported
