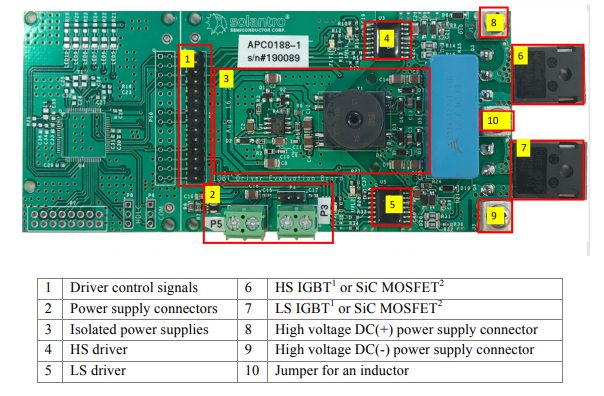

Solantro SA6880-S Evaluation Board

Solantro SA6880-S Evaluation Board is designed to allow testing of two SA6880-S drivers in either a half-bridge or a DC/DC synchronous buck configuration. The 1200V/380V, a 15mH inductor, and a 4.6µF capacitor should be populated for synchronous buck testing. This evaluation board must include a few specifications for synchronous configuration. These specifications include 1200V input voltage, 380V output voltage, 0.4A output current, 20kHz operation frequency, and 0.34 duty cycle.
