SolaHD SDN-D DIN Rail Power Supplies

SolaHD SDN-D DIN Rail Power Supplies are compact, high-efficiency power supplies ideal for harsh environments, extreme temperatures (-40°C to +70°C), and hazardous locations. The SDN-D Power Supplies offer extensive diagnostics via optional network communications modules. These devices provide up to 120% continuous power boost for temperatures up to +50°C and active Power Factor Correction (PFC) greater than 0.98. The SDN-D DIN Rail Power Supplies from SolaHD includes extensive international hazardous location certifications.

Features

High-performance unit in a compact package
Optional network communications modules provide important diagnostic information to controllers, HMI, and computers
Up to 120% continuous power boost for temperatures up to +50°C
Multi-turn potentiometer simplifies the accurate setting of the output voltage
Extensive international hazardous location certifications, including Class I Zone 2, ATEX, and IECEx. Hazardous location temperature code (T-Code) rating of T4
Inductive Load Power Boost additional short-term power to assist in starting loads with high inrush current
Dual output terminals for convenience in wiring

DC OK relay to provide diagnostic information to a programmable logic controller, controller, or monitoring system
Circuit Interruption Power Boost provides short duration peak current sufficient to trip properly-sized load side fuse or circuit breaker in the event of a load fault
Universal AC and DC input voltages to accommodate global requirements
Wide operating temperature range (-40°C to +70°C)
Active PFC greater than 0.98
Parallel operation capability standard
Supports redundant power supply operation using optional SDN™ Redundancy modules
Five-year limited warranty

Applications

Industrial automation
Process control

Material handling and conveyors
Hazardous locations

SolaHD SDN-D DIN Rail Power Supplies

Features

Applications

Videos

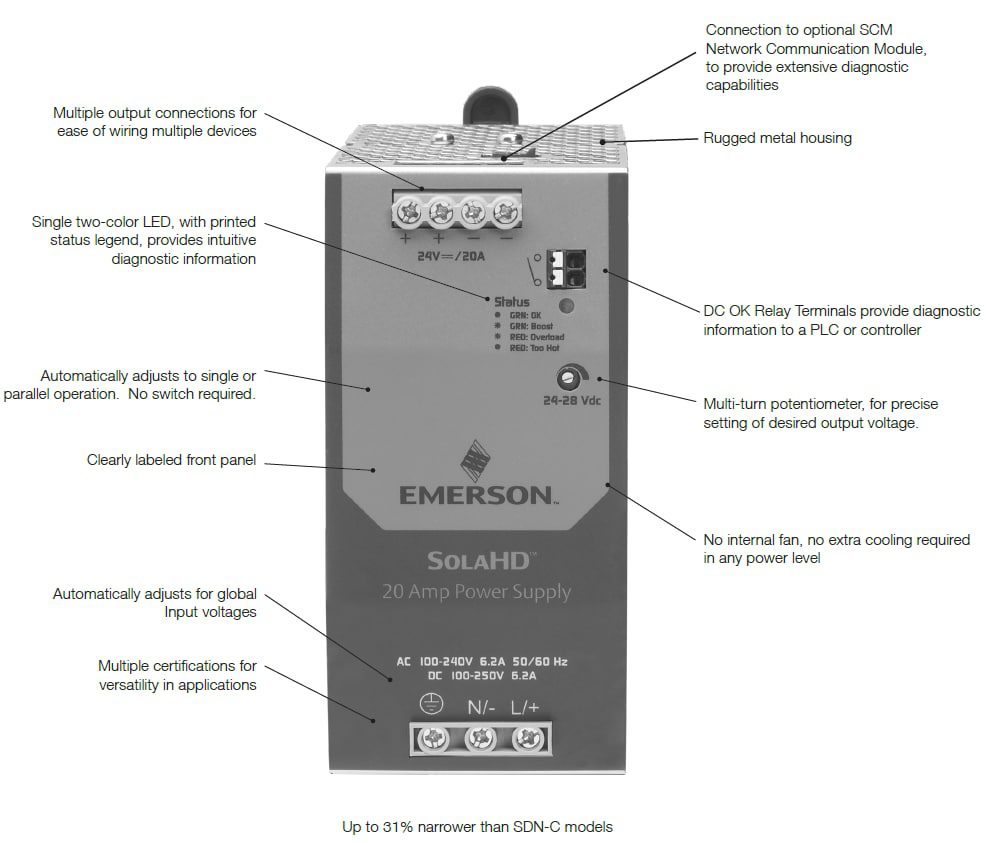

Call-Outs
