SL Power TF3000 3000W Industrial Power Supplies

SL Power TF3000 3000W Single-Output Industrial Power Supplies are ideal for power-hungry applications that require reliable power in a small form factor (6.7″ x 2.5″ x 11″). These applications include automated tests, semiconductor test/handling, and industrial imaging. The TF3000 power supplies provide system scalability, enabling more user-driven features and flexibility to program the output voltage from 0 to 105% of the nominal. SL Power TF3000 3000W Single-Output Industrial Power Supplies offer a universal input range, parallel operation with current sharing, and 5V or 9V auxiliary output with digital control/monitoring via RS232, RS485, or I²C.

Features

3000W fan-cooled (load and temperature controlled)
0 to 105% programmable output voltage and current
Forced current sharing at parallel operation
Constant current limit
Selectable +5V/0.5A or +9V/0.3A auxiliary output
Universal input range
LED status indicator
Power OK signal

Remote sensing multi-PSU via RS232, RS485, and I²C
Remote ON/OFF and remote sense functions
Overtemperature, overvoltage, overload, and fan failure protection
Global control via RS232
3-year warranty
RoHS compliant

Applications

Automated tests (ATE)
Semiconductor test and handling
Laser cutting
Large-scale battery test systems
Oscilloscopes
Protocol analyzers

Power meters
Chromatography
Rheometers
Kiosks
Sorting machines

Specifications

Input
- 100V_AC to 240V_AC, ±10%, 47Hz to 63Hz, 1ø 127V_DC to 370V_DC input voltage and frequency
- Input current
  - 19.7A, 115V_AC at 2000W output
  - 14.5A, 230V_AC at 3000W output
- 0 up to 20A current range
- 33A/115V_AC or 65A/230V_AC inrush current
- 93% efficiency
- 0.95/230V_AC and 0.98/115V_AC (at full load) power factor
- <3.5mA/240V_AC leakage current
Temperature range
- - -25°C to +60°C operating
  - -40°C to +85°C storage

Output
- 150V to 400V output voltage range
- 3000W continuous output power
- ±5.0% typical voltage range adjustment by a potentiometer (VR1)
- ±2% voltage tolerance
- 14ms/230V_AC hold-up time (at full load)
- 1100ms turn-on time
- 300ms rise time (at full load)
- 1500mV pk-pk to 4000mV pk-pk ripple and noise range
- ±1% line and load regulation
6.69″ x 2.5″ x 11.02″ dimensions
>112,000 hours reliability per MIL-HDBK-217F

SL Power TF3000 3000W Industrial Power Supplies

Features

Applications

Specifications

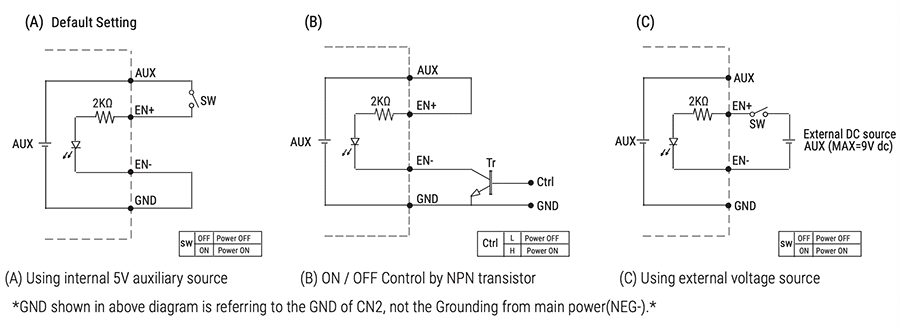

Remote On/Off
