SL Power SLB125 125W Single Output Power Supplies

SL Power SLB125 125W Single Output Power Supplies offer a 125W maximum power rating, 12V to 48V voltage range, and up to 10.4A output current rating. The SLB series features a streamlined design, delivering an efficient cost structure without sacrificing the quality and reliability expected from an SL Power solution. These power supplies provide a small size of 2″ x 4″ x 1.2″, -20°C to +70°C operating temperature range, and 125W with 200 LFM airflow rating. SL Power SLB125 125W Single Output Power Supplies are ideal for medical, industrial, and 1U applications.

Features

  • Small size of 2” x 4” x 1.2”
  • For 1U applications
  • 85W convection cooled
  • 125W with 200 LFM airflow
  • Certified to 90VAC to 264VAC
  • UL/CSA/IEC/IEC60601-1, IEC62368-1 approved
  • 2 x MOPP isolation
  • Meets 4th edition/heavy industrial EMC
  • -20°C to +70°C operating temperature range

Applications

  • Medical
  • Industrial
  • 1U applications

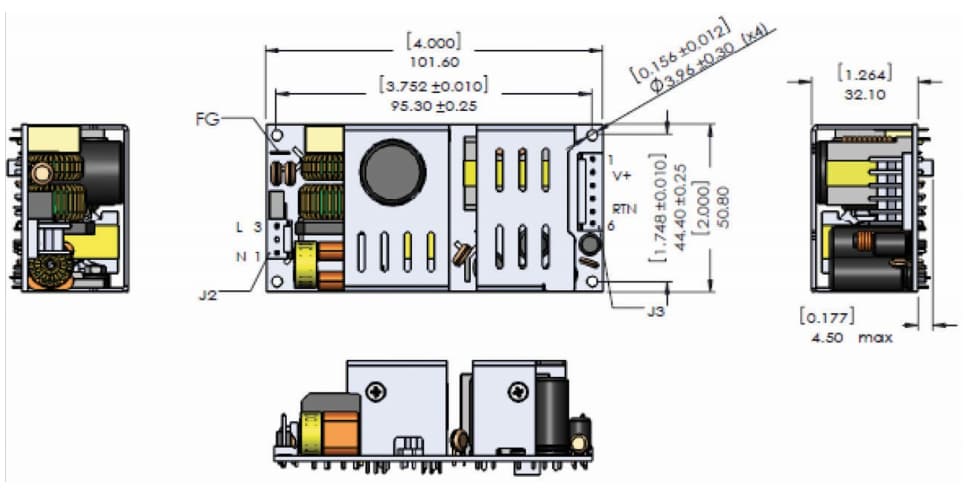

Mechanical Drawing

Mechanical Drawing - SL Power SLB125 125W Single Output Power Supplies
