SL Power NGB150 Medical/Industrial AC-DC Power Supplies

SL Power NGB150 Medical/Industrial AC-DC Power Supplies are designed to meet the demanding needs of modern devices, featuring an input range of 85V_AC to 264V_AC (operating) and a safety rating of 100V_AC to 240V_AC. These units offer stable power delivery across a broad range of input voltages and handle a wide input frequency range of 47Hz to 63Hz. The NGB150 power supplies are housed in a compact form factor of 4″ x 2″ x 1.26″ with high efficiency of 90% (typical). Single DC output voltage options include 12V, 15V, 19V, 24V, and 48V. SL Power NGB150 Medical/Industrial AC-DC Power Supplies have full medical and industrial safety and EMC approvals. The series complies with the IEC 60601-1-2 4th edition for medical equipment and IEC 62368-1 for industrial applications. The NGB150 lineup meets the reliability, size, performance, and compliance requirements of demanding mission-critical medical and industrial applications.

Features

Single output
Industrial / medical safety approvals
High efficiency
Overvoltage and short-circuit protection
Margin programming
Long lifespan with >7-year E-Cap life
3-year warranty
RoHS compliant

Compliance
- EMI Class B
- EN 61000 immunity
Safety
- UL EN 62368-1/UL60601
- CSA No. 62368-1/60601
- CB Report IEC 62368-1 and IEC 60601-1

Specifications

150W maximum output power
85V_AC to 264V_AC input voltage
100V_AC to 240V_AC safety rating
12V, 15V, 19V, 24V, or 48V output voltage
47Hz to 63Hz input frequency range

Optional 5V at 0.5A housekeeping
90% typical efficiency
±10% adjustment range
4″ x 2″ x 1.26″ dimensions
-20°C to +70°C operating temperature range

SL Power NGB150 Medical/Industrial AC-DC Power Supplies

Features

Specifications

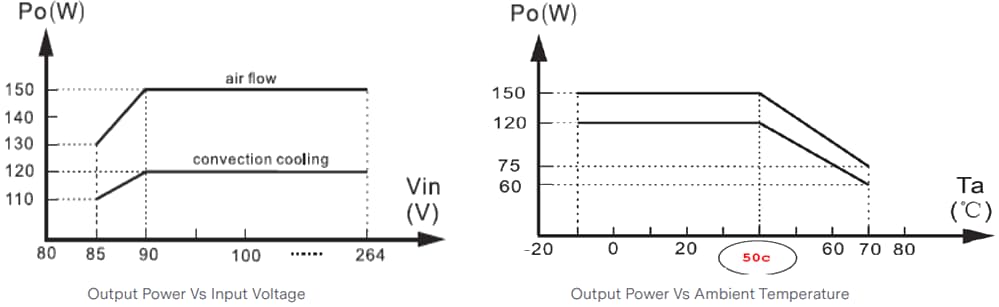

Output Power Graphs
