Skyworks Solutions Inc. SKY66395-11 4800-5000MHz Power Amplifier

Skyworks Solutions Inc. SKY66395-11 4800-5000MHz Power Amplifier is a +30dBM high-efficiency power amplifier (PA) with high gain and linearity. The Skyworks Solutions Inc. SKY66395-11 only requires a single 5V supply. The amplifier has integrated an active biasing circuit to compensate for PA performance over temperature, voltage, and process variation.

Features

4800-5000MHz range
+30dBm high power
> 100MHz wide bandwidth
Single 5V supply voltage and on-chip active temperature compensated bias circuit

High efficiency
High gain
PAEN = 1.5V to 2.5V integrated enable On/Off function
Compact (20-pin, 8mm × 8mm × 1.3mm) package (MSL3, 260°C per JEDEC J-STD-020)
Pin-to-pin compatible PA family supporting key 5G bands

Applications

High efficiency (DPD) power amplifier for 5G small cells
Driver amplifier for micro, macro, and massive MIMO base stations

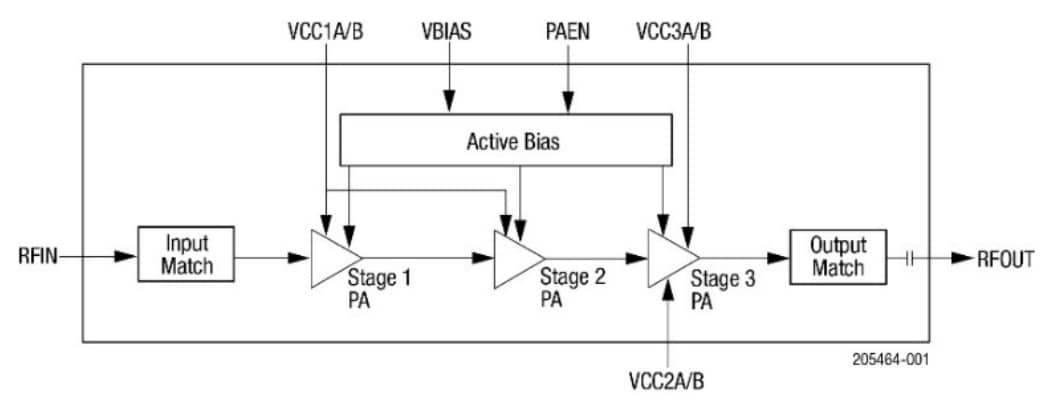

Block Diagram

Skyworks Solutions Inc. SKY66395-11 4800-5000MHz Power Amplifier
