Skyworks Solutions Inc. SI823Hx Gate Driver Boards

Skyworks Solutions SI823Hx Gate Driver Boards are ideal for driving power modules and discrete transistors. This two-channel isolated gate driver solution features a differential digital interface, optimized onboard isolated power supply, and user-configurable turn-on and turn-off gate resistors. The SI823Hx gate driver boards are available with 1Ω or 4Ω gate resistors and feature status indicator LEDs and test points that makes evaluation and prototyping easy. These gate driver boards offer overlap protection and reverse polarity protection for the 12V input supply. The SI823Hx boards operate at the -50°C to +85°C temperature range and 10.2V to 13.2V supply voltage range.

Additional System Components

The Si823Hx gate driver board is highly versatile but must be combined with other components to form a complete system. The Si823Hx gate driver board requires differential signal inputs and most lab equipment only provides single-ended signals, it may prove helpful to use the Wolfspeed differential transceiver companion tool. Also, see other evaluation tools listed below.

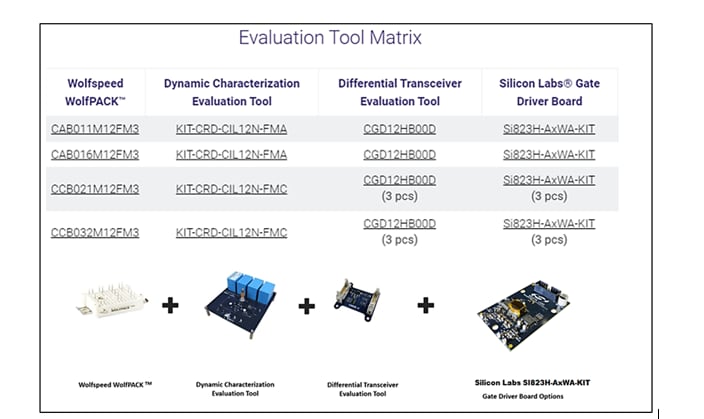

Evaluation tool matrix

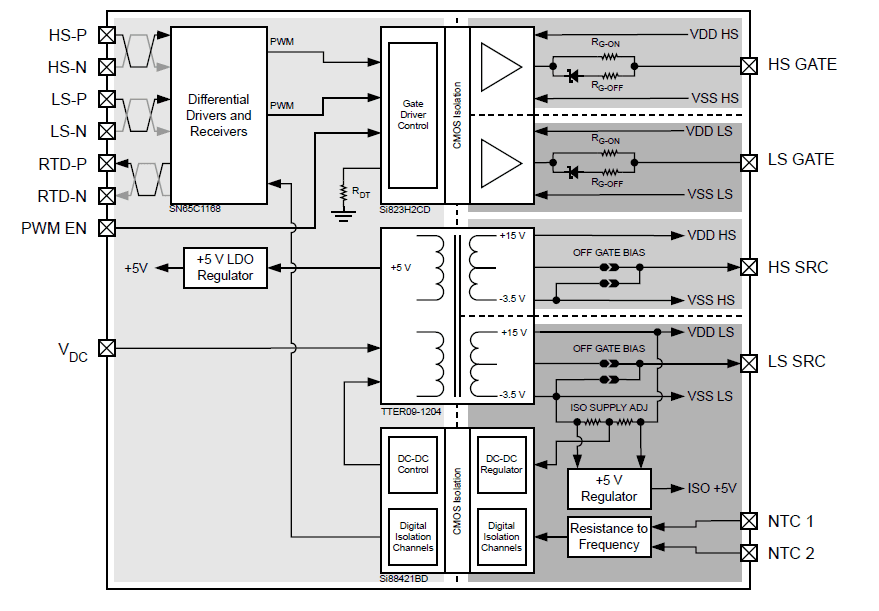

Schematic - Skyworks Solutions Inc. SI823Hx Gate Driver Boards

Evaluation tools

CAB011M12FM3
CAB016M12FM3
CCB021M12FM3
CCB032M12FM3

KIT-CRD-CIL12N-FMC

KIT-CRD-CIL12N-FMA

Features

Two input high-side/low-side gate driver
User-programmable dead-time
Overlap protection
4A symmetric peak output current
Available with 1Ω or 4Ω gate resistors
Independent control of turn on/turn off timing through gate resistor selection
Flexible isolated power supplies
DC bus voltage up to 800V

5kV_RMS safety rated isolation
125kV/μs Common Mode Transient Immunity (CMTI)
Reverse polarity protection for 12V input supply
Differential inputs for increased noise immunity
Module temperature (NTC) output as frequency modulated digital signal

Specifications

10.2V to 13.2V supply voltage range
100kHz switching frequency

-50°C to 85°C operating temperature range
-50°C to 125°C storage temperature range

Kit Contents

1 x Si823H-ABWA-GDB gate driver board:
- Si823H2CD-IS3 two-channel isolated gate driver
- Si88421BC-IS two-channel digital isolator with integrated DC-DC converter

1 x quick start card
