Skyworks Solutions Inc. SI34071AC12V8KIT Evaluation Kit

Skyworks Solutions Inc. SI34071AC12V8KIT Evaluation Kit offers an isolated, forward topology evaluation board as a reference design for a power supply in Power over Ethernet (PoE) Powered Device (PD) applications. The Skyworks Solutions Inc. board provides a 12V/6A isolated output. Additionally, it features IEEE 802.3bt interfacing and power supply control in a single chip solution with the Si34071 PoE IC.

Features

IEEE 802.3bt compliant
EMI compliant
91% efficiency
High integration
Simple 9600-baud UART interface

Autoclass feature
Integrated transient overvoltage protection
Thermal shutdown protection
5mm x 5mm 32-pin QFN package

Skyworks Solutions Inc. SI34071AC12V8KIT Evaluation Kit

Features

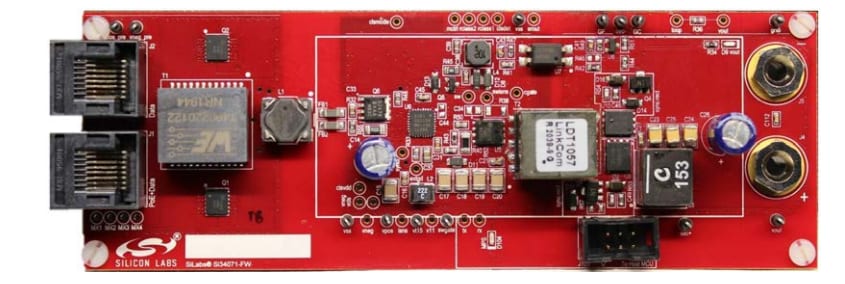

Layout

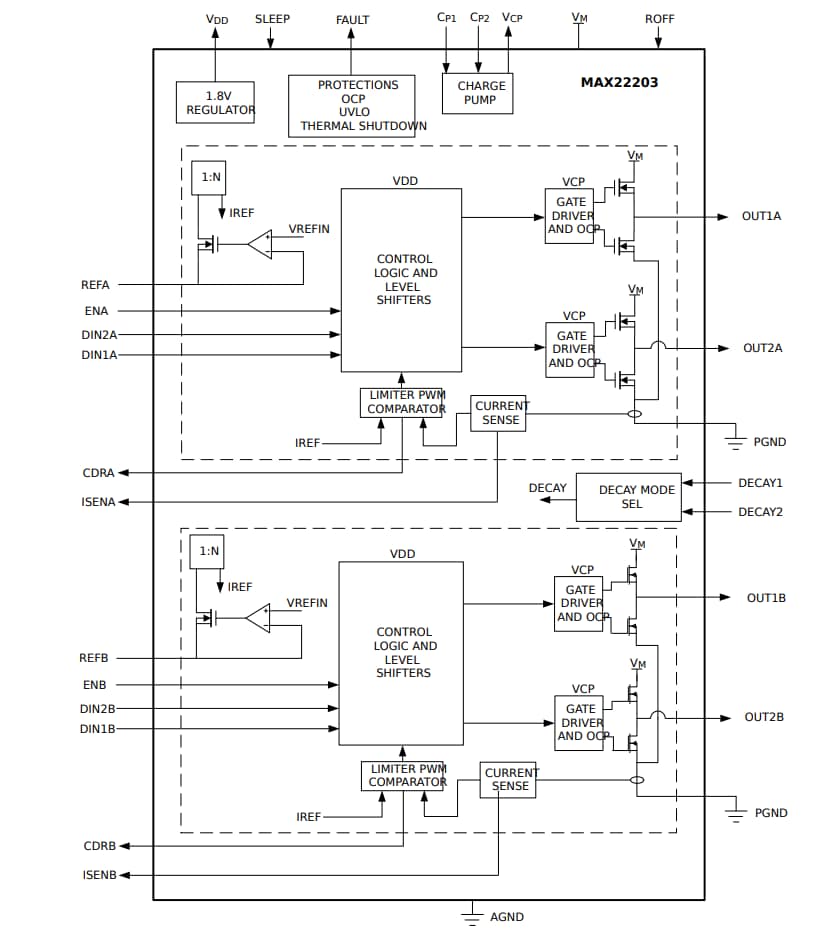

Simplified Block Diagram
