SkyHigh Memory S40FC016 eMMC Flash Devices

SkyHigh Memory S40FC016 eMMC Flash Devices are managed NAND memory solutions designed for embedded applications. These eMMC devices include a standard MLC NAND flash memory and flash controller and are compatible with JEDEC JESD84-B51. The S40FC016 eMMC flash devices offer excellent reliability, high performance, and minimal power consumption. These eMMC flash devices are highly optimized firmware that features a secure removal type, configurable drive strength, health monitoring, and packed CMD and queuing. These eMMC flash devices operate at a -40°C to 85°C temperature range, and V_CCQ: 1.7V to 1.95V and V_CC: 2.7V to 3.6V supply voltage ranges. The S40FC016 eMMC flash devices are ideally used in set-top boxes, gaming consoles, consumer electronics, and industrial applications.

Features

HS400 and HS20
Boot feature/boot partition
Partitioning, RPMB, and RPMB throughput improve
HPI, BKOPS, and BKOP operation control
Sanitize, discard, trim, and erase
Lock/unlock
High priority interrupt
Secure removal type
Configurable drive strength
Cache, cache barrier, and cache flushing report
Reliable write
Hardware/software reset

Health monitoring
Field firmware update
PON and sleep/awake
Packed CMD and CMD queuing
Data strobe pin and enhanced data strobe
Production state awareness
Write protect and secure write protection

Specifications

3.3V operating supply voltage
16GB memory size
13mm x 11.5mm x 0.8mm dimensions

2.7V to 3.6V supply voltage range
-40°C to 85°C operating temperature range (automotive/industrial)

Applications

Set-top boxes
Gaming consoles
Consumer electronic devices

Industrial applications
Defect management
Garbage collection

SkyHigh Memory S40FC016 eMMC Flash Devices

Features

Specifications

Applications

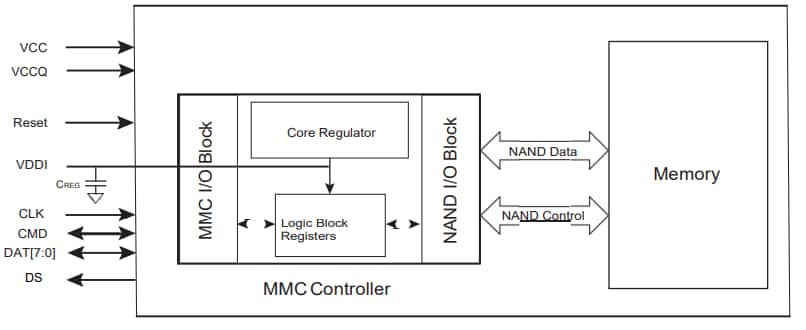

Block Diagram
