Simpson Electric Company 260-8P LED Lighted Analog VOMs

Simpson Electric Company 260-8P LED Lighted Analog VOMs are rugged, accurate, compact, and easy-to-use instruments. These instruments are equipped with a mirrored dial to eliminate parallax. This 260-8P LED Analog VOMs can accurately measure AC and DC voltage, direct current, resistance, decibels, and output voltage. The output voltage function measures the AC component of a mixture of AC and DC voltage, and it occurs primarily in amplifier circuits. The 260 VOMs feature up to 25V AC/DC range, continuity test alarm, and individual dual jacks for the 500V AC/DC and AC/DC ranges.

Features

12402:

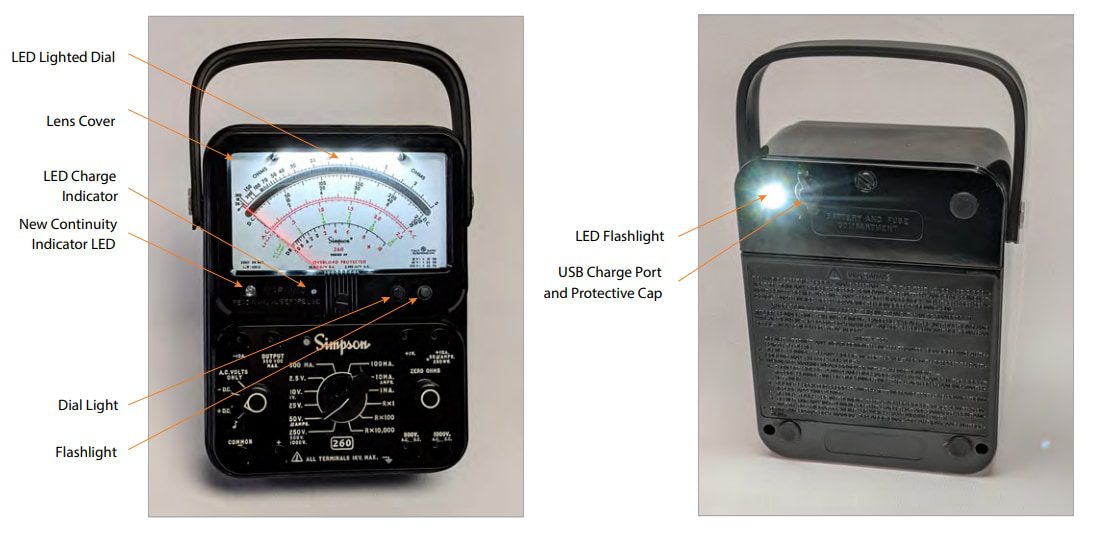

- Lighted dial with gasket cover (extreme particulate/moisture protection)
Rechargeable (USB) lighting system
LED and sound continuity indicator
Battery charge indicator (on front)
LED flashlight and protected charge port (on back)

36 measurement ranges – AC and DC voltage, current measurements, and resistance testing
Safeguarded connections to prevent operator/tool contact with electrical connections
Overload protection
Easy to operate – two knobs control the selection of functions and ranges
Rugged phenolic case with reinforced walls for maximum durability
Made in the USA

Specifications

DC voltage (250mV, 1V, 2.5V, 10V, 25V, 50V, 250V, 500V, and 1000V):
- 2% of full-scale accuracy
- 20KΩ per volt sensitivity
AC voltage (2.5V, 10V, 25V, 50V, 250V, 500V, and 1000V):
- 3% of full-scale accuracy
- 5KΩ per volt sensitivity

Decibel:
- -20dB to 50dB ranges and 0dB = 1mW into 600Ω reference
AC current
- Up to 250 AC amperes with AC amp-clamp adapter accessory 00545
1000V AC/DC maximum rated circuit-to-ground voltage
7inch (H) x 5.5inch (W) x 3.1inch (D) (18cm x 14cm x 8cm) dimensions
