Silvertel EvalAgSil SIL Module Evaluation Board

Silvertel EvalAgSil Single-In-Line (SIL) Module Evaluation Board is designed to assist with evaluating Silvertel SIL format powered device modules in an application. Silvertel EvalAgSil Eval Board is designed to handle 10/100/1000/10GBASE-T Ethernet data rates. The board is made to pass through Ethernet data signals (10/100/1000/10GBASE-T) from the Midspan Power Sourcing Equipment (PSE) or PoE-enabled switch connected to J100, onto the system connected to J101.

Features

Designed to handle 10/100/1000/10GBASE-T Ethernet data rates
Assists with evaluating Silvertel SIL format modules in an application
Designed to pass through Ethernet data signals (10/100/1000/10GBASE-T) from the Midspan PSE or PoE-enabled switch connected to J100, onto the system connected to J101

Kit Contents

EvalAgSil Evaluation Board
Bridge rectifier module

Schottky bridge rectifier module
Ideal bridge rectifier module

Silvertel EvalAgSil SIL Module Evaluation Board

Features

Kit Contents

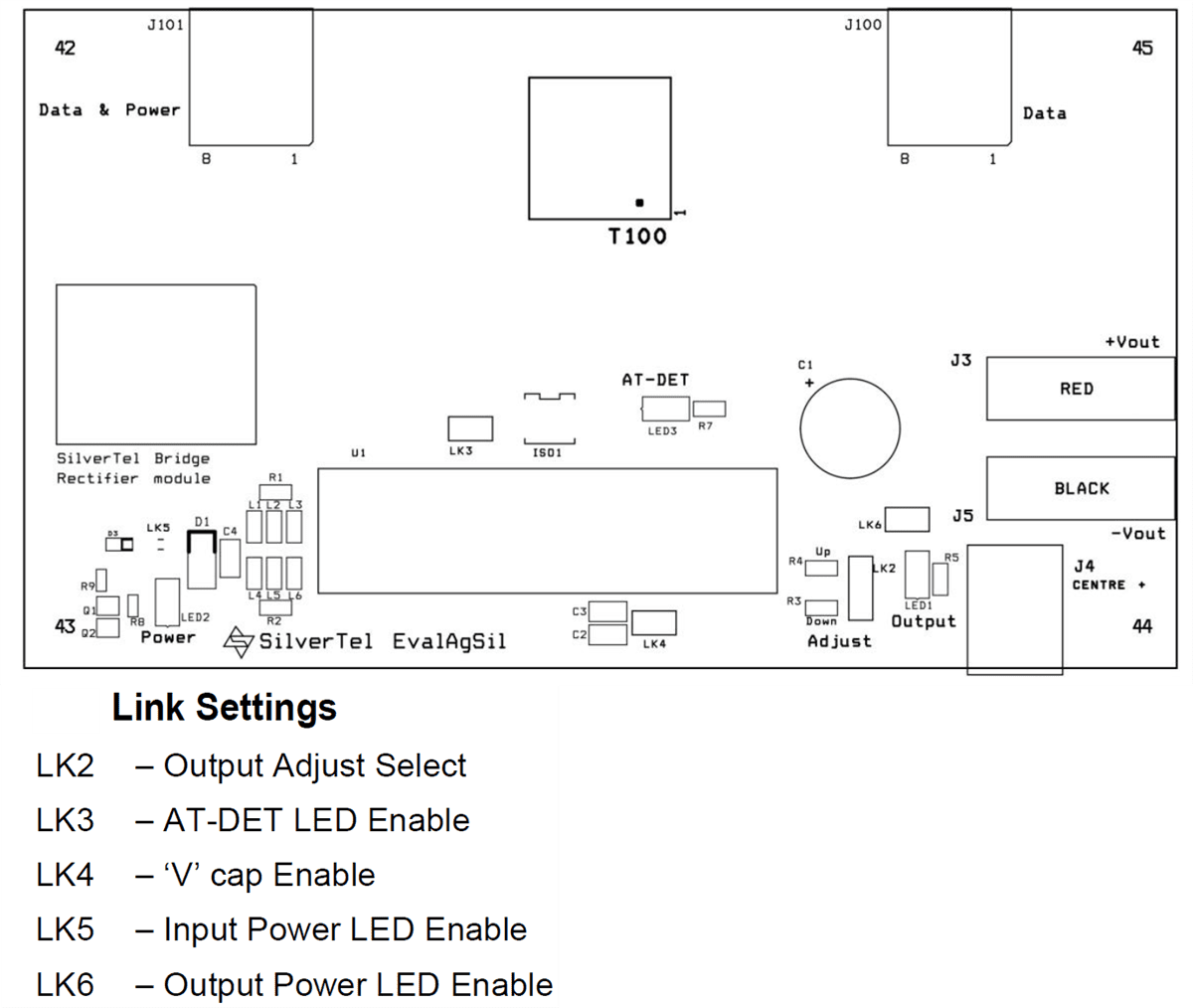

Board Layout

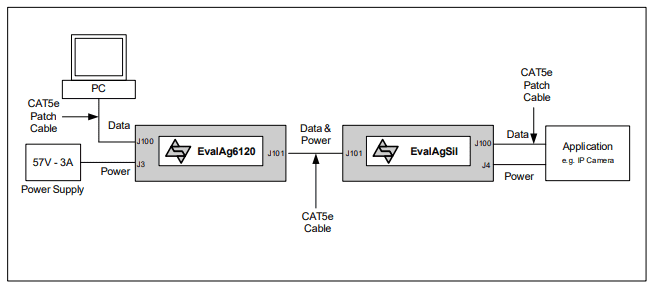

Basic Test Set-Up
