Silvertel Battery Charger Modules

Silvertel Battery Charger Modules are designed to maximized rechargeable battery life, reduced maintenance cost, and power consumption. These modules offer a wide DC input voltage range and a high-efficiency DC to DC converter. The battery charger modules come with a charging voltage that is controlled to high accuracy and independent of temperature variations. These modules have optimized and programmable charging profiles that are used to ensure battery longevity. The battery charger modules operate at 9V to 36V input supply voltage range and -0.3V to 40V supply voltage range. These modules are designed for use with Sealed Lead Acid (SLA) batteries and for charging SLA solar batteries using a solar panel power source.

Features

Maximized battery life
Reduced maintenance cost
Reduced power consumption
Simple integration
Temperature compensation
AG103 module:
- Maximum Power Point Tracking (MPPT)
- Small DIL footprint
- Deep discharge protection

AG102 module:
- Battery reversal protection
- Intelligent ‘Top-up’ float charge
- Programmable charge current
- Charge condition indicator outputs
- Overload and short-circuit protection

Specifications

AG102:
- -20°C to 50°C operating temperature range
- 12.9V battery capacity threshold voltage
AG103:
- -20°C to 70°C operating temperature range
- 10mA battery standby current

-0.3V to 40V supply voltage range
-40°C to 100°C storage temperature range
9V to 36V input supply voltage range

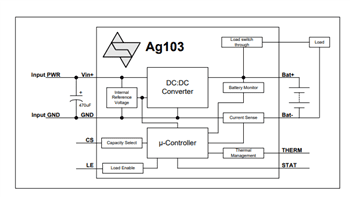

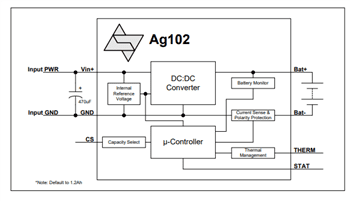

Block Diagrams

Block Diagram - Silvertel Battery Charger Modules
