Silvertel AG7x DC-DC Converter Modules

Silvertel AG7x DC-DC Converter Modules are low noise DC-DC boost converters designed to generate higher voltages required for IEEE802.3 PSE applications from lower voltage supplies. These modules feature over current, thermal, and short circuit protection. The AG7x modules come with simple integration and provide > 90% high efficiency. These modules include a small footprint, low noise, and output ripple. The AG7x modules offer low voltages such as 5V or 12V up to the levels required to transmit over the Ethernet cable.

Features

Small footprint
Over-current, thermal, and short circuit protection
>90% efficiency

Low noise and output ripple
Simple integration
Small package

Specifications

AG7100:
- 12V to 27V input voltage range
- 48V to 57V adjustable output voltage range
- -20°C to 70°C operating temperature range
- 11V to 30V DC supply voltage range

AG7200:
- 5V to 15V input voltage range
- 36V to 57V adjustable output voltage range
- -40°C to 85°C operating temperature range
- 4.5V to 15.5V DC supply voltage range

Block Diagrams

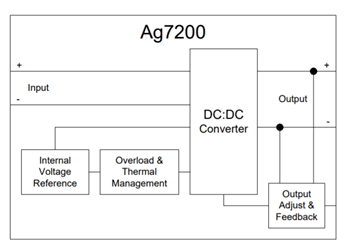

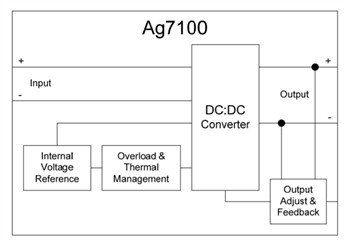

Block Diagram - Silvertel AG7x DC-DC Converter Modules
