Silvertel Ag105 Miniature Lithium-ion Charge Controller

Silvertel Ag105 Miniature Lithium-ion Charge Controller is a solar charge controller for protected Lithium-ion (Li-ion) and Lithium Polymer (Li-Po) batteries that can also be used with a fixed DC supply in standalone applications. The module design requires very few supporting components to configure the charger to any application. With a wide 11V_DC to 36V_DC operating input range and intelligent charging techniques [such as maximum power point tracking (MPPT)], the Ag105 will adjust the charge rate to optimize power produced by a solar panel. The Ag105 Miniature Lithium-ion Charge Controller can be configured for 1, 2, or 3 series cell Li-ion batteries, with four voltage per-cell options to balance serviceable battery lifetime and usable capacity.

Features

Solar panel or fixed DC source charge controller for lithium-ion battery packs
Maximum Power Point Tracking (MPPT)
JEITA compatible lithium-ion battery charger
Integrated Buck-Boost converter
Adjustable charge voltage and current
Fully integrated module, minimal external components

Wide DC input voltage range
I²C interface
High efficiency
Low heat output
Overload, short-circuit, and thermal protection
Silvertel “design-in” assistance
RoHS compliant

Specifications

-0.3V_DC to 36V_DC supply voltage range
11V to 36V input supply voltage range
11V typical input undervoltage lockout
88% typical charge efficiency
30-minute typical pre-charge timeout
18mA maximum idle input current
4A maximum continuous discharge current
120µA to 420µA battery standby current range
0.5V to 3.3V STAT output range

100mVp-p typical output ripple at the battery terminal
0.15% typical line regulation
0.4% typical load regulation at 24V_IN
300mAp-p maximum ripple and noise at a 2.5A charge
Temperature ranges
- -40°C to +70°C operating
- -40°C to +100°C storage

Silvertel Ag105 Miniature Lithium-ion Charge Controller

Features

Specifications

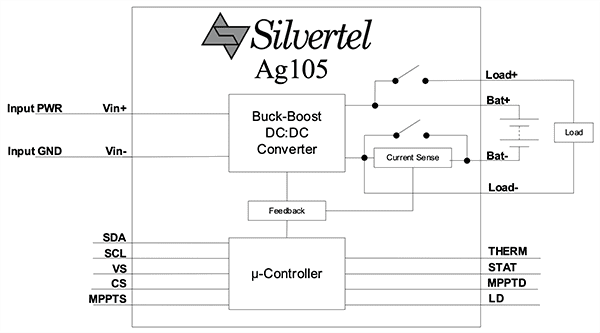

Block Diagram
