Silicon Labs xG24-RB4188A Antenna Diversity Radio Board

Silicon Labs xG24-RB4188A Antenna Diversity Radio Board is a plug-in board for the Wireless Starter Kit Mainboard (BRD4001A) and the Wireless Pro Kit Mainboard (BRD4002A). The xG24-RB4188A is an excellent starting point to get familiar with the EFR32™ Wireless Gecko Wireless System-on-Chip. This complete reference design for the EFR32xG24 Wireless SoC offers a matching network and two SMA connectors for 20dBm output power in the 2.4GHz band.

Features

EFR32xG24 Wireless Gecko Wireless SoC with 1536kB Flash and 256kB RAM (EFR32MG24B220F1536IM48)
2x SMA connector

RF switch for antenna diversity
8Mbit low-power serial flash for over-the-air upgrades

Kit Contents

1x BRD4188B EFR32xG24 2.4GHz 20dBm Antenna Diversity Radio Board
2x 2.4GHz WiFi antenna (KLS KLS1-WIFI-2.4G-04-MS-108MM)

Edge Impulse Resources

Infographic - Silicon Labs xG24-RB4188A Antenna Diversity Radio Board

View ’s Edge Impulse Resource Hub
Get started with Edge Impulse

Silicon Labs xG24-RB4188A Antenna Diversity Radio Board

Features

Kit Contents

Edge Impulse Resources

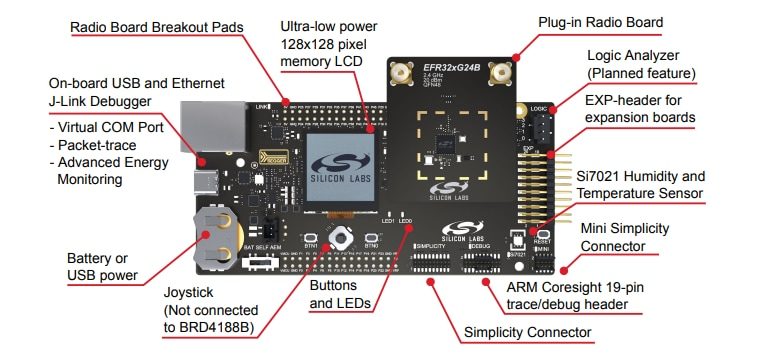

Layout – Pro Kit Mainboard

Layout – STK Mainboard
