Silicon Labs xG24 Dev Kit for EFR32BG24 BLUETOOTH Wireless SoCs

Silicon Labs xG24 Dev Kit for EFR32BG24 BLUETOOTH® Wireless SoCs is a compact, feature-packed development platform designed to support the EFR32™ Wireless Gecko System-on-Chip. The kit provides a fast path to develop and prototype wireless loT products.

The Silicon Labs xG24-DK2601B EFR32xG24 Development Kit supports up to +10dBm output power and includes support for the 20-bit ADC and other key features such as the xG24’s AI/ML hardware accelerator.

Features

2.4GHz ceramic chip antenna
Power control of on-board peripherals for ultra-low power operation
Relative humidity and temperature sensor
Ambient light sensor
Hall effect sensor
6-axis inertial sensor
MEMS stereo microphones
Pressure sensor
32 Mbit flash for OTA programming and data logging
RGB LED and two pushbuttons

Precise voltage reference and dedicated U.FL connector for ADC measurements
20-pin 2.54mm breakout pads
Qwiic® connector
SEGGER J-Link on-board debugger
Virtual COM port
Packet Trace Interface (PTI)
Mini Simplicity connector for AEM and packet trace using external Silicon Labs debugger
USB or coin cell battery powered
External battery connector

Target Device

• EFR32 Wireless Gecko System-on-Chip (EFR32MG24B310F1536IM48-B)
• High-performance 2.4GHz radio
• 32-bit ARM® Cortex®-M33 with 78MHz maximum operating frequency
• 1536 flash and 256kB RAM

Kit Contents

1x MG24 Dev Kit board (BRD2601B)
1x USB Type-A to Micro-B cable

Hardware Features

EFR32MG24 Wireless Gecko SoC with 78MHz operating frequency, 1536kB flash, and 256kB RAM
2.4GHz ceramic antenna for wireless transmission
Silicon Labs Si7021 relative humidity and temperature sensor
Silicon Labs Si7210 Hall effect sensor
TDK InvenSense ICM-20689 6-axis inertial sensor
Two ICS-43434 MEMS microphones
Bosch Sensortec BMP384 barometric pressure sensor
Ambient light sensor (VEML6035)
Macronix ultra-low-power 32Mbit SPI flash (MX25R3235F)
RGB LED and two pushbuttons
U.FL connector and precise external voltage reference for ADC measurements
Power enable signals and isolation switches for ultra-low power operation

On-board SEGGER J-Link debugger for easy programming and debugging, which includes a USB virtual COM port and Packet Trace Interface (PTI)
Mini Simplicity connector for access to energy profiling and advanced wireless network debugging
Breakout pads for GPIO access and connection to external hardware
Qwiic connector for connecting external hardware from the Qwiic Connect System
Reset button
Automatic switchover between USB and battery power
CR2032 coin cell holder and external battery connector

Silicon Labs xG24 Dev Kit for EFR32BG24 BLUETOOTH Wireless SoCs

Features

Target Device

Kit Contents

Hardware Features

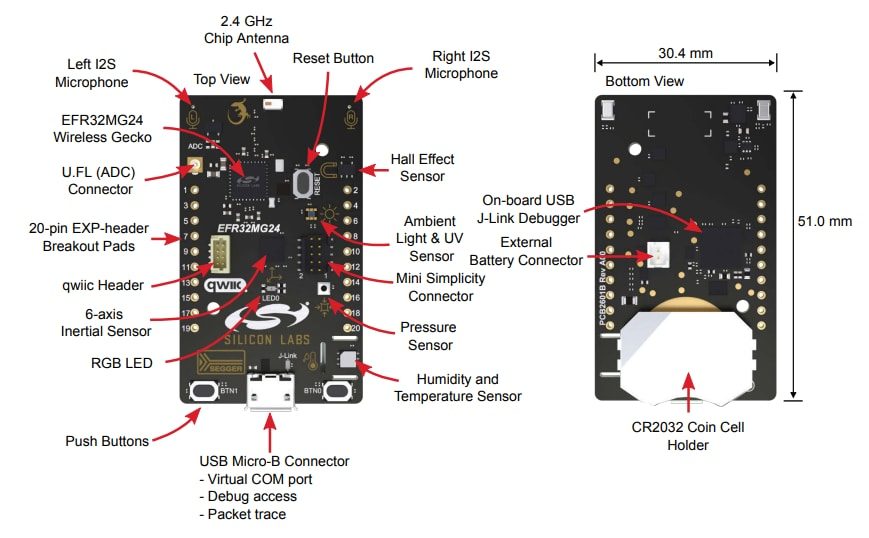

Layout

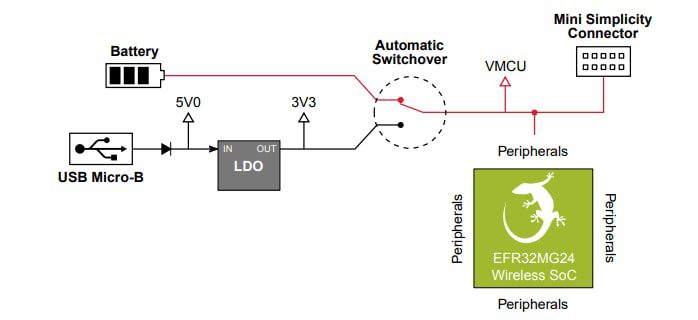

Power Architecture

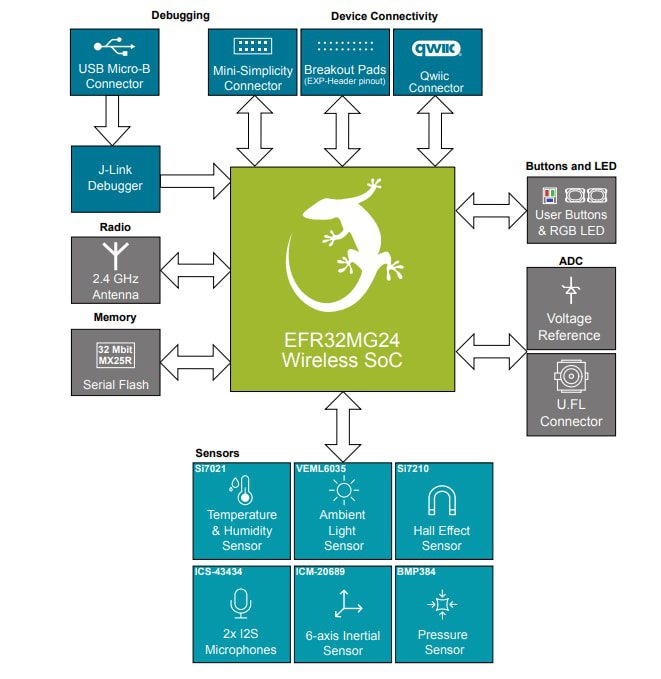

Block Diagram
