Silicon Labs MGM240P Modules

Silicon Labs MGM240P Modules are optimized for battery and line-powered IoT devices for 2.4GHz mesh networks. The modules are based on the Series 2 EFR32MG24 SoC. The devices enable 802.15.4 (Zigbee®, OpenThread®) and Bluetooth® Low Energy connectivity. The MGM240P delivers exceptional RF performance and energy efficiency. The modules feature matter ready Smart Home Connectivity, industry-leading Secure Vault® technology, and future-proofing capabilities. The MGM240P is a complete solution with robust and fully-upgradeable software stacks, global regulatory certifications, advanced development, and debugging tools. Documentation is available to simplify and minimize end-product development cycles to accelerate time-to-market.

Features

32-bit ARM® Cortex®-M33 core with 78MHz maximum operating frequency
Up to 1536kB of flash and 256kB of RAM
High-performance radio with up to +19.5dBm output power
Energy efficient design with low active and sleep currents
Robust peripheral set and up to 31 GPI
Secure Vault High

Regulatory Certifications
CE (EU)
UKCA (UK)
FCC (USA)
ISED (Canada)
MIC (Japan)
KC (South Korea)

Applications

Smart Home – Gateways and Hubs, sensors, switches, door locks, smart plugs
Building Automation – Gateways, sensors, switches
Protocol Stacks

Matter
OpenThread
Zigbee
Multiprotocol

Silicon Labs MGM240P Modules

Features

Applications

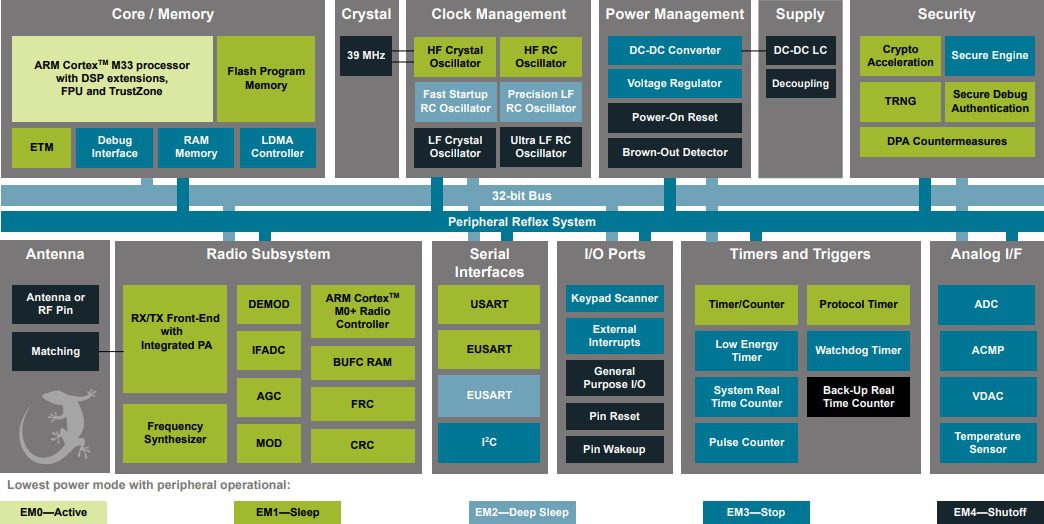

Block Diagram

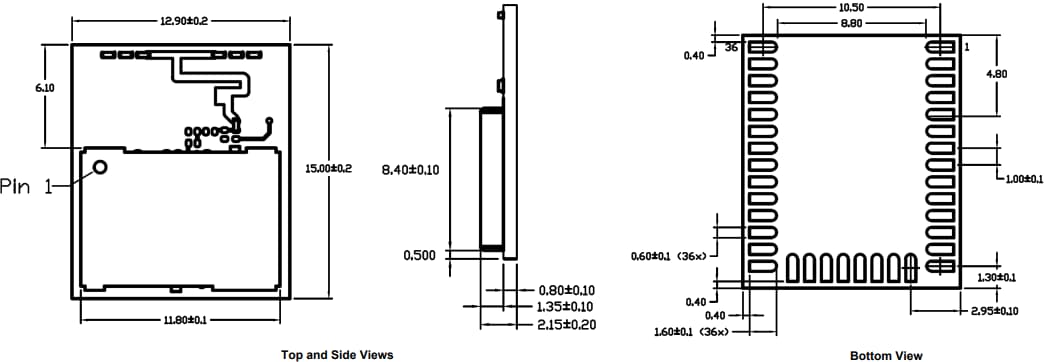

Package Outline
