Silicon Labs FG25-RB4272A 470MHz 16dBm Radio Board

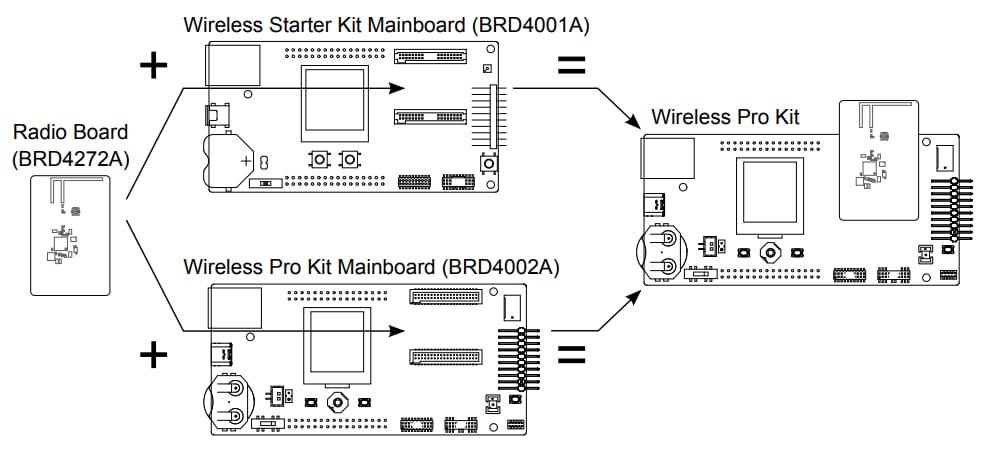

Silicon Labs FG25-RB4272A Development Tool is an excellent starting point for getting familiar with the EFR32 Wireless Gecko Wireless System-on-Chip. The Silicon Labs FG25-RB4272A is a plug-in board for the BRD4001A Wireless Starter Kit Mainboard and the BRD4002A Wireless Pro Kit Mainboard. The board is a complete reference design for the EFR32FG25 Wireless SoC, with matching networks for 16dBm output power and an SMA connector for the 470MHz band.

Features

EFR32FG25 Wireless Gecko Wireless SoC with 1920kB Flash and 512kB RAM (EFR32FG25B222F1920IM56)
Sub-GHz integrated radio transceiver

16dBm output power
SMA antenna connector (470MHz)
8Mbit low-power serial flash for over-the-air upgrades

Applications

IoT device development
Smart home automation
Wireless sensor networks
Asset tracking and monitoring
Wireless lighting control

Remote control and monitoring systems
Wireless health monitoring
Industrial automation
Automotive wireless systems
Wireless security systems

Kit Contents

1x BRD4272A EFR32FG25 470MHz 16dBm Radio Board
1x 470MHz antenna (Laird EXC470SM)
