Silicon Labs FG25-RB4271A Radio Board

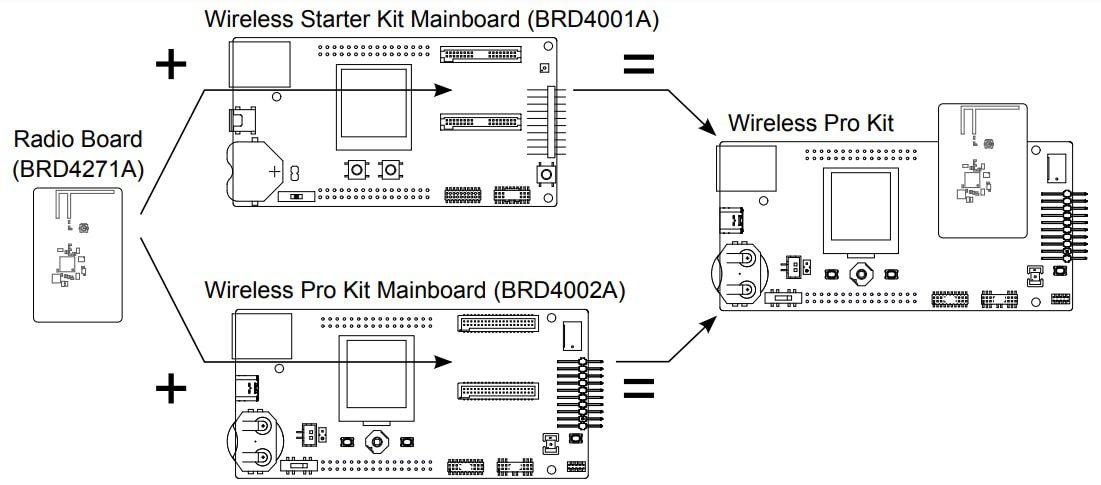

Silicon Labs FG25-RB4271A Radio Board is a critical component of the Wireless Pro Kit, offering a comprehensive solution for the EFR32 Gecko Wireless System-on-Chip. The Silicon Labs FG25-RB4271A is a plug-in board for the BRD4001A Wireless Starter Kit Mainboard or the BRD4002A Wireless Pro Kit Mainboard. With its 16dBm output power and SMA connector for the 863-870MHz band, the board is an ideal starting point for wireless technology.

Features

EFR32FG25 Wireless Gecko Wireless SoC with 1920kB Flash and 512kB RAM (EFR32FG25B222F1920IM56)
Sub-GHz integrated radio transceiver

16dBm output power
SMA antenna connector (863-870MHz)
8Mbit low-power serial flash for over-the-air upgrades

Applications

Building successful wireless communication applications
Development of Silicon Labs wireless applications
Exploring the capabilities of the EFR32 Wireless Gecko Wireless System-on-Chip
