Silicon Labs FG23 868MHz to 915MHz +14 dBm Development Kit

Silicon Labs FG23 868MHz to 915MHz +14 dBm Development Kit is a compact, feature-packed development platform. The kit provides a fast path to develop and prototype sub-GHz loT products. The development platform includes support for the FG23’s onboard segment LCD controller as well as other key features including LESENSE and pulse counter.

Features

+14 dBm xG23 Dev board based on the xG23 512kB Flash QFN48 SoC SMC Connector Packet Trace Interface Virtual COM port
J-Link on-board debugger supporting SWD
External device debugging

USB connectivity
Segment LCD
User LED/ pushbuttons
Si7021RHT Sensor
CR2032 coin cell battery support

Kit Contents

BRD2600A xG23 863-915MHz +14 dev board
868MHz antenna

915MHz antenna
USB cable

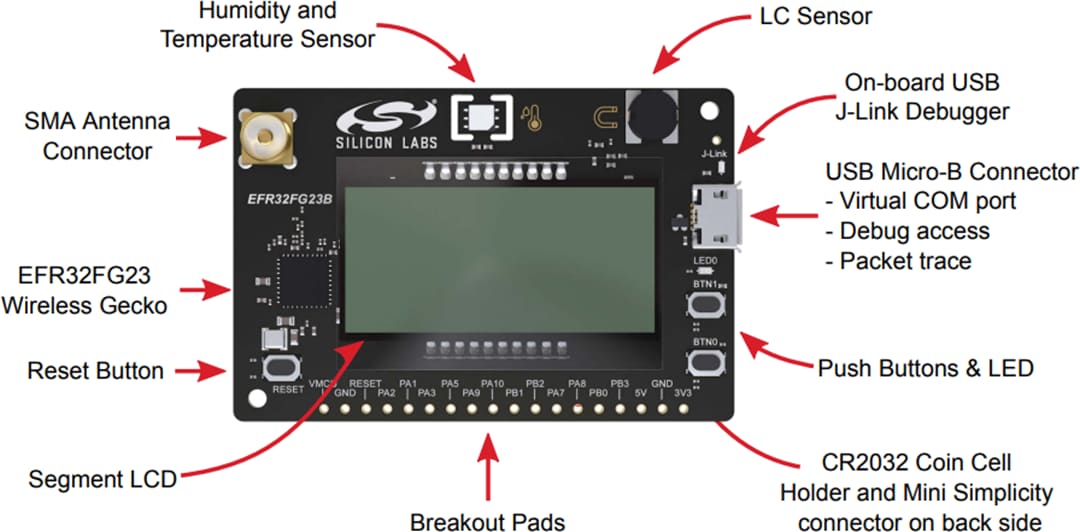

Board Layout

Silicon Labs FG23 868MHz to 915MHz +14 dBm Development Kit

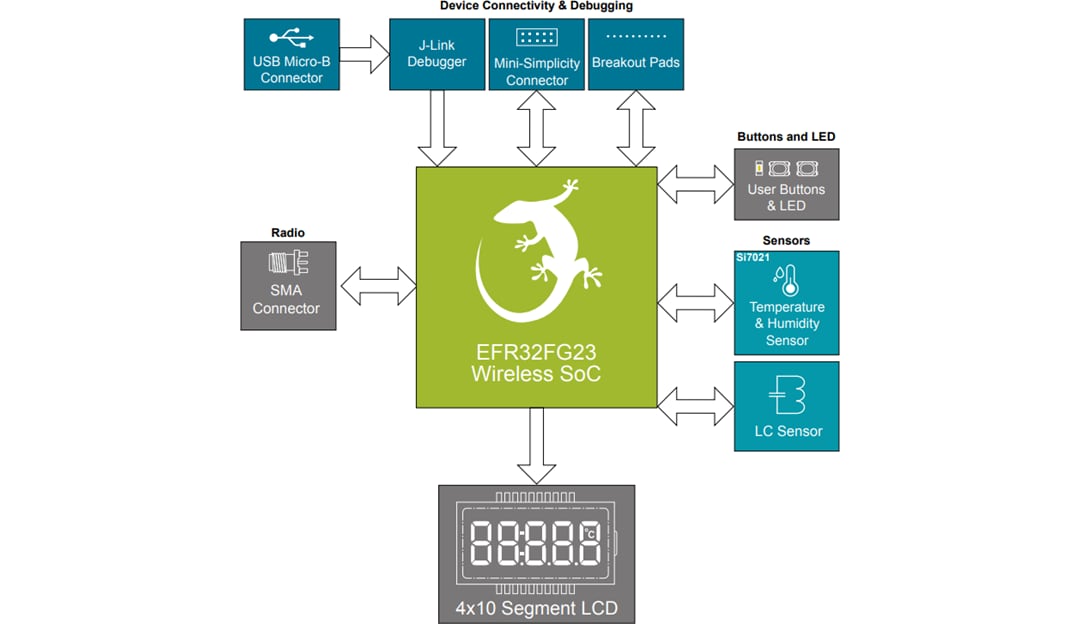

Block Diagram

Block Diagram - Silicon Labs FG23 868MHz to 915MHz +14 dBm Development Kit
