Silicon Labs BGM220 BLUETOOTH® Wireless Explorer Kit

Silicon Labs BGM220 BLUETOOTH® Wireless Explorer Kit is designed for IoT devices using the BGM220P Wireless Gecko Bluetooth Module. The BGM220P Module is based on the EFR32BG22 System-on-Chip, ideal for developing energy-friendly connected IoT applications.

The Silicon Labs BGM220 Explorer Kit includes a mikroBUS™ socket and Qwiic^® connector, allowing users to add features to the Kit with a large selection of off-the-shelf boards from MikroE, Sparkfun, AdaFruit, and Seeed Studios. Additionally, the Kit features a USB interface, an onboard SEGGER J-Link debugger, one user-LED, and a button.

Connecting external hardware to the BGM220 Explorer Kit can be achieved using the 20 breakout pads, which present peripherals from the BGM220P Wireless Gecko, such as I²C, SPI, UART, and GPIOs. The mikroBUS socket allows inserting mikroBUS add-on boards that interface with the BGM220P through SPI, UART, or I²C. The Qwiic connector can be used to connect hardware from the Qwiic Connect System through I²C.

Features

User LED and push button
20-pin 2.54mm breakout pads
mikroBUS™ socket
Qwiic^® connector

SEGGER J-Link on-board debugger
Virtual COM port
Packet Trace Interface (PTI)
USB-powered

Kit Contents

1x BGM220 Explorer Kit board (BRD4314A)
Hardware
- BGM220P Wireless Gecko Module with 76.8 MHz operating frequency, 2.4GHz ceramic antenna for wireless transmission, 512kB flash, and 32kB RAM
- One LED and one push button
- On-board SEGGER J-Link debugger for easy programming and debugging, which includes a USB virtual COM port and Packet Trace Interface (PTI)
- MikroBUS™ socket for connecting click boards™ and other mikroBUS add-on boards
- Qwiic^® connector for connecting Qwiic Connect System hardware
- Breakout pads for GPIO access and connection to external hardware
- Reset button

Silicon Labs BGM220 BLUETOOTH® Wireless Explorer Kit

Features

Kit Contents

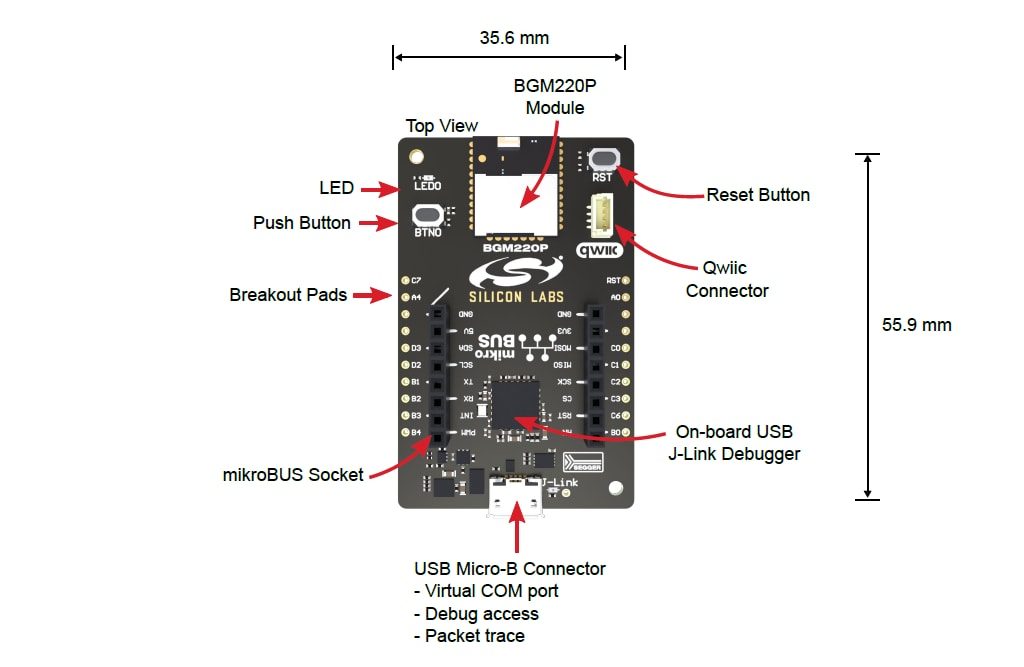

Kit Hardware Layout

Videos

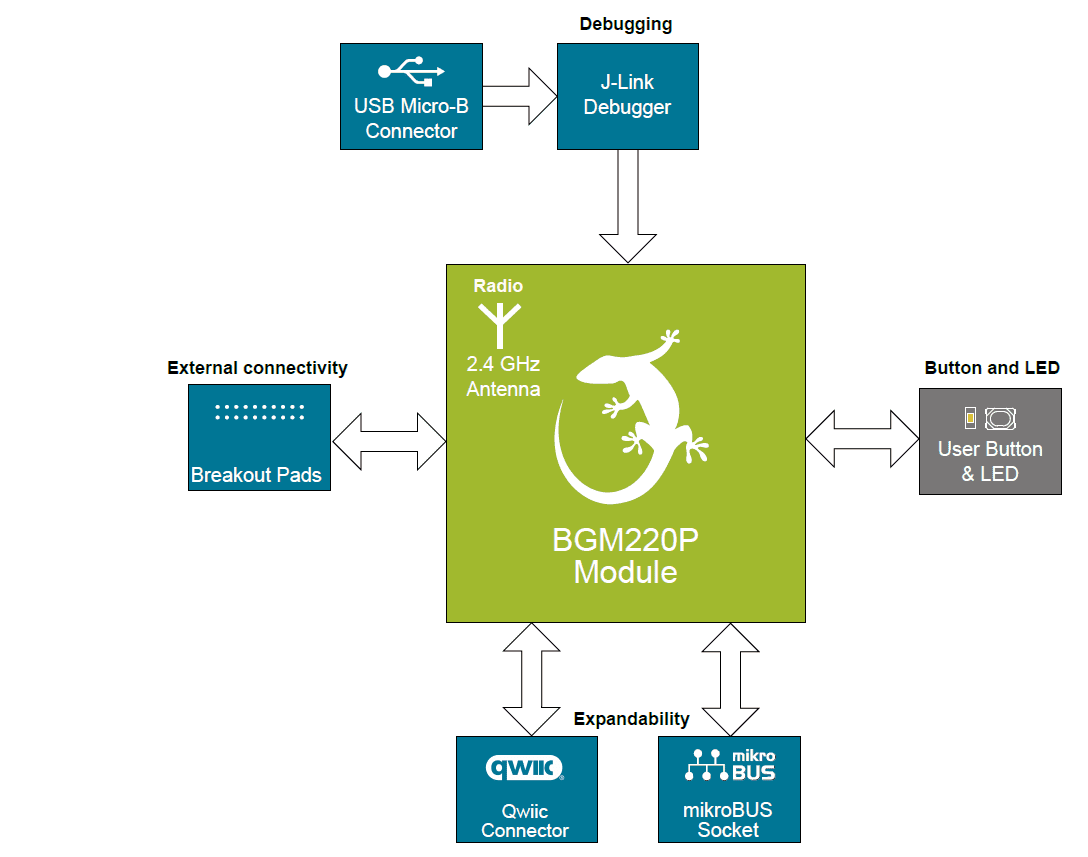

Block Diagram

Connector Layout
