Silicognition LiFePO4wered/Pi+™ Battery Power System

Silicognition LiFePO4wered/Pi+™ Battery Power System is a powerful battery solution for the Raspberry Pi, providing 20 minutes to 9 hours of battery power. Power times depend on the Pi model, peripherals, and system load. Silicognition LiFePO4wered/Pi+ fully supports usage as a UPS, allowing it to be permanently powered, even from intermittent power sources and solar panels, while providing conditioned power to the Pi. Mounting is recommended using the included 16mm M2.5 machine screws, M2.5 nuts, and 7/16″ nylon spacers for stability without stressing GPIO connections.

Features

18650 3.2V 2000mAH battery size
High continuous load current whether on battery or external power
Smart charge controller
- Over-charge protection
- Auto-adjusting charge current
- Customizable maximum power point (MPP) voltage
Open source host-side tools (see GitHub repo)
- LiFePO4wered daemon takes care of shutdown and RTC management
- Command line tool allows simple configuration and access to all features
- Shared library, language bindings C/C++, Python, and Node.js bindings allow integration into user programs

Smart power manager
- I²C communication
- Power manager and daemon
- Continuous monitoring
- On/off button
- Green PWR LED
- Red CHRG LED
- Wake timer
- Real-time clock
- Auto boot
- Auto shutdown
- Application watchdog can alert a user by flashing the PWR LED or triggering a shutdown/reboot
Compact physical dimensions 65.3mm x 18.4mm

Applications

Raspberry Pi battery management
GPIO header connector

Silicognition LiFePO4wered/Pi+™ Battery Power System

Features

Applications

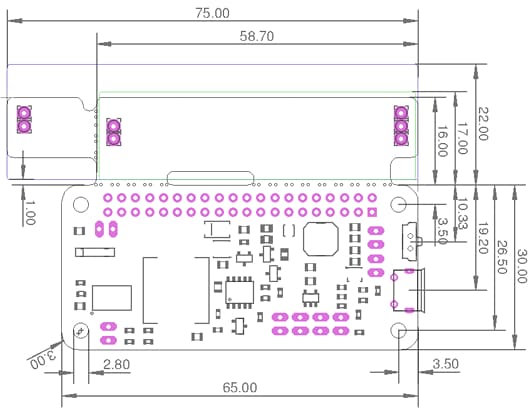

Mechanical dimensions
