Silicognition CS-LIFEPO-05/06 LiFePO4wered/Pi Development Tools

Silicognition CS-LIFEPO-05/06 LiFePO4wered/Pi Development Tools are high-performance battery power systems for the Raspberry Pi. These development tools can power a Raspberry Pi for up to 9 hours from the battery and can be left plugged in continuously. The 14500 and 18650 battery sizes come without a stackable header. This stackable header allows other boards to be attached and powered. These development tools operate at 0.75A and 2A continuous load current, both on battery or with external power. The CS-LIFEPO-05/06 tools feature continuous measurement of input voltage, battery voltage, output voltage, and load current with smart user-programmable thresholds.

Features

  • Provide high power density, extended cycle life (2000+ cycles), and safety from fire and explosions
  • Smart auto-adjusting charge current allowing charge currents up to 1.5A
  • An on-board mechanical on/off button providing clean boot/shutdown capability even in headless setups
  • Compatible with original Raspberry Pi model A and model B with additional wiring
  • Convenient connection points for input power, 5V output power, and switched battery power

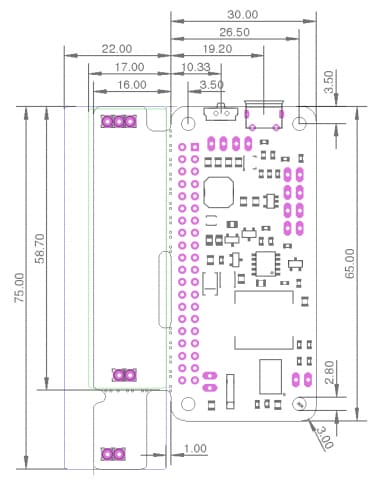

Mechanical Drawing

Mechanical Drawing - Silicognition CS-LIFEPO-05/06 LiFePO4wered/Pi Development Tools
