Silex Technology SX-SDMAH 802.11ah Wi-Fi HaLow™ SDIO/SPI Modules

Silex Technology SX-SDMAH 802.11ah Wi-Fi HaLow™ SDIO/SPI Modules are enabled by Morse Micro’s MM6108. The SX-SDMAH modules feature a host SDIO or SPI interface to operate with a processor or a microcontroller. The devices support up to 8MHz channel bandwidth to improve the maximum data throughput in countries allowing 8MHz usage. A small footprint design with an integrated antenna connector saves PCB space and allows a flexible embedded system design. SX-SDMAH also features high transmission power to gain more distance and coverage.

Features

Complies with IEEE 802.11ah
1/2/4/8MHz channel bandwidth support
Up to 32.5Mbps PHY bit rate
Transmission power of +23dBm or higher (target)
Access point and station mode
SDIO/SPI interface

Enhanced Open/WPA3 security
Power-saving mode
Modular certification for the United States and Canada (plan)
Linux/Free RTOS driver support

Applications

Wi-Fi HaLow access points
Gateways
Ethernet wireless bridges
Wi-Fi extenders
IP cameras and thermography cameras

3D scanners
GNSS receivers
Vehicle telemetry devices
High-end sensors (e.g. vibration sensors)
Access control systems

Specifications

MM6108 chipset
Host interfaces
- SDIO for Linux
- SPI for FreeRTOS
MHF1 antenna connector
8MHz frequency

32.5Mb/s data rate
23dBm output power
1.8V/3.3V operating supply voltage
60-pin LGA package, 17mm x 18mm x 2.65mm dimensions
-40°C to +85°C operating temperature range

Silex Technology SX-SDMAH 802.11ah Wi-Fi HaLow™ SDIO/SPI Modules

Features

Applications

Specifications

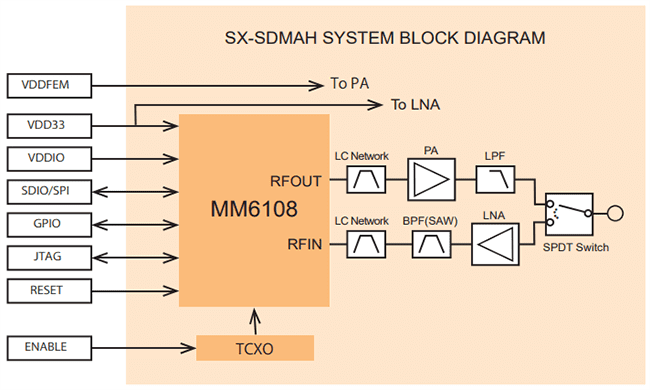

Block Diagram
