Silex Technology SX-PCEAC PCI Express Half Mini Card WLAN Modules

Silex Technology SX-PCEAC PCI Express Half Mini Card WLAN Modules are radio modules that support dual-band IEEE802.11ac/a/b/g/n and PCI express 1.1. These modules are made of chipset QCA9880-BR4A that contains a MAC/BBP 2.4GHz RF front end circuits and a 5GHz RF front end module 85717-11 (Skyworks). The SX-PCEAC PCI express half mini card WLAN modules feature 3 spatial data stream systems (3T3R) and offer 1.3Gbps maximum data transfer rate. These modules are designed with 3×3 SU-MIMO with wideband 80MHz mode and high-density modulation module. The SX-PCEAC PCI express half mini card WLAN modules are RoHS compliant and comply with EU RoHS directive 2011/65/EC (lead-free). These WLAN modules operate at the 0°C to 60°C temperature range and -0.3V to 3.6V supply voltage range.

Features

IEEE802.11a/b/g/n/ac Wave2 compliant (2.4GHz, 5GHz)
3 spatial data stream system (3T3R)
Supports PCI express 1.1 as the wireless LAN host interface
1.3Gbps max data transfer rate
PCI express interface
Qualcomm Atheros QCA9880 chipset
5GHz:
- Support 20/40/80MHz bandwidth mode (PHY data rate 1300Mbps)
2.4GHz:
- Support 20/40MHz bandwidth mode (PHY data rate 450Mbps)

PHY data rate:
- 802.11b/g 1-54 Mbps
- 802.11a 6-54 Mbps
- 802.11n MCS0-7 High-Speed mode (HT mode)
- 802.11ac MCS0-9 Very High-Speed mode (VHT mode)
Supports IEEE802.11e, IEEE 802.11h, and IEEE 802.11i
3×3 SU-MIMO enhances high speed and stability
Linux reference driver with IEEE802.11x EAP
Modular certifications for FCC/IC, CE, and MIC
RoHS compliant

Specifications

2.4GHz and 5GHz operating frequency range
29.85mm x 50.8mm x 4mm dimension
0°C to 60°C operating temperature range

5°C to 35°C storage temperature range
-0.3V to 3.6V supply voltage range
7.2g weight of the module

Silex Technology SX-PCEAC PCI Express Half Mini Card WLAN Modules

Features

Specifications

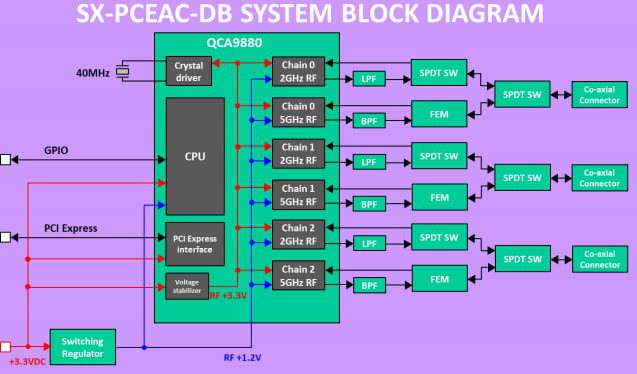

Block Diagram

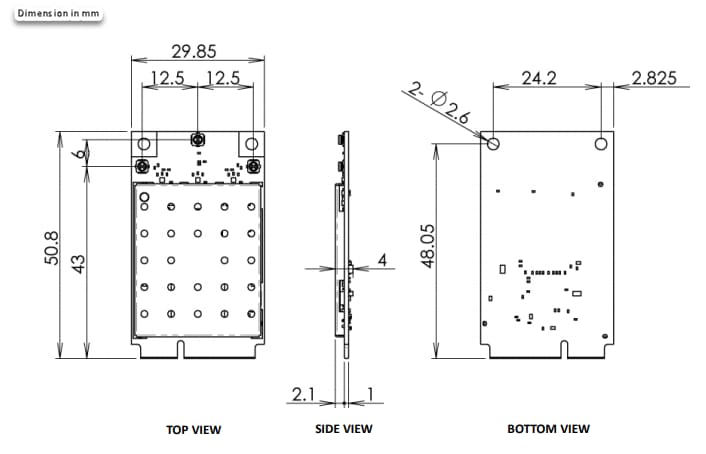

Mechanical Dimension
